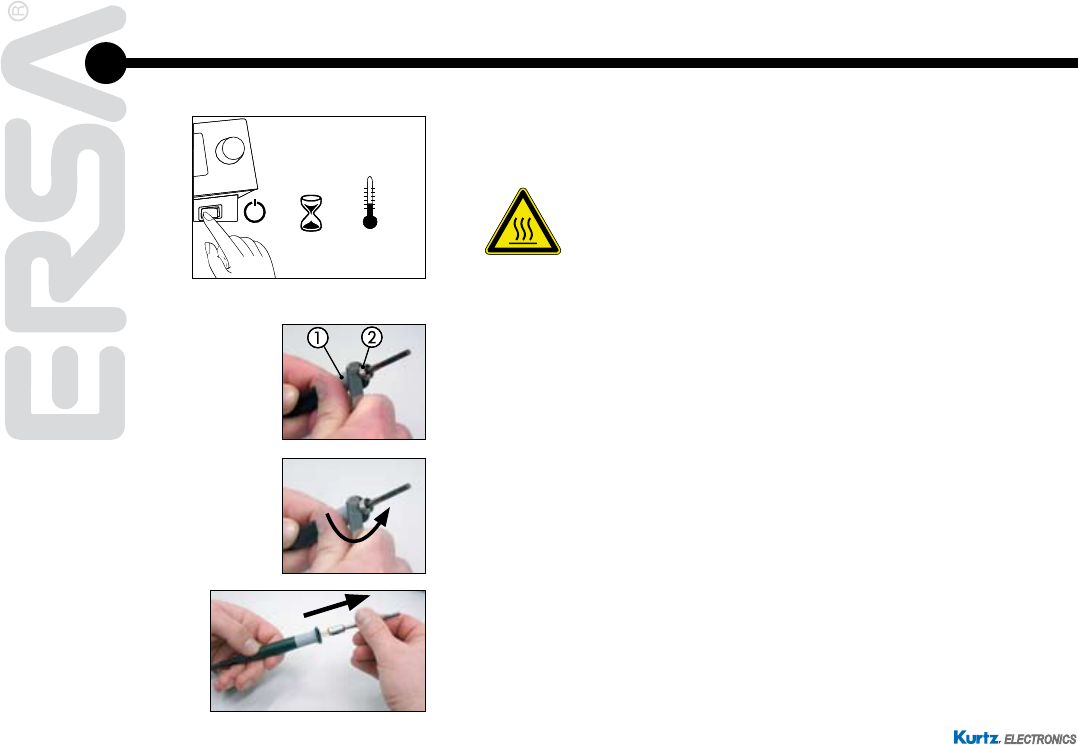

6.8 Changing the Heating Element
Before changing a heating element:
■
Switch off the station and let the soldering tip cool off. Subsequently
remove the soldering tip as described above.
Attention! Only replace the heating elements when they are cold
- burn hazard!
6.8.1 i-Tool
■
Position the tweezers tool between handle a and thread b
■
Loosen the heating element by levering it slightly
■
Pull out the loosened heating element
OFF
40°C72°F
_
OFF
40°C72°F
_
