i-CON 1 / 34
3BA00180 • 28.04.2008 • Rev. 1
Operating instructions
■

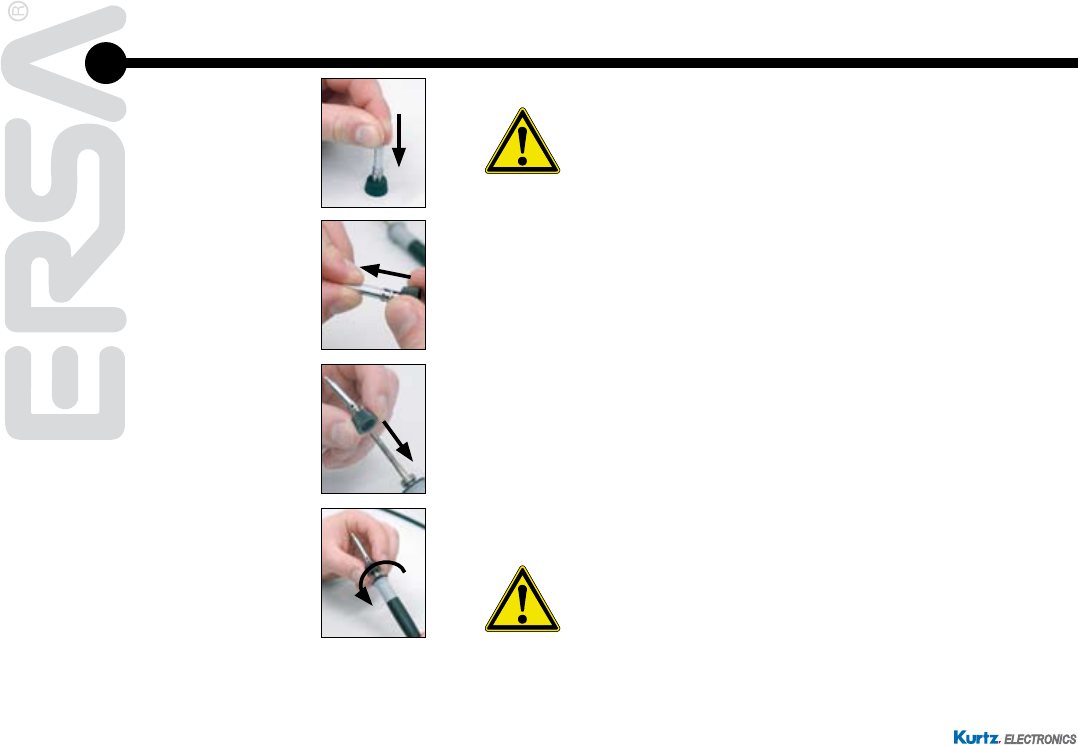

Carefully push the soldering tip out of the collar. Do not bend!
Attention!
Do not press on top of the tip! Risk of injury!
■
Carefully pull the new soldering tip into the retainer, until it engages.
Do not bend!
■
Slide the new soldering tip and the collar onto the heating element.
■
Screw the tip tightly onto the soldering iron by turning the knurled
screw clockwise.
Caution!
Do not operate soldering tools without soldering tip! By this
means the heating element may be damaged!
