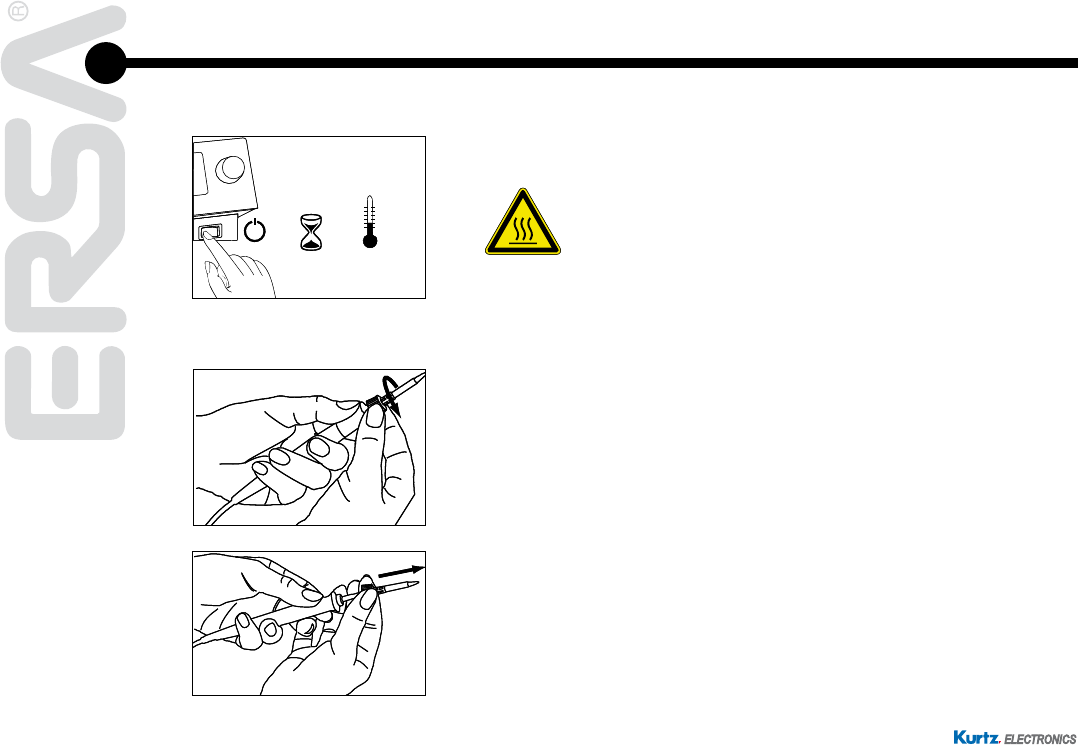

6.7 Replacing the soldering tip
Replace the soldering or desoldering tip when they are worn. Before replacing the
soldering tip:
■
Switch off the station and let the soldering tip cool off.
Attention!
Only replace the tips when they are cold - burn hazard!
When the tip has cooled off, proceed as follows:
6.7.1 i-Tool
■
Loosen the soldering tip by turning the knurled nut counter-clockwise.
■
Pull the tip and the retainer off of the heating element.
OFF
40°C72°F
_
OFF
40°C72°F
_
