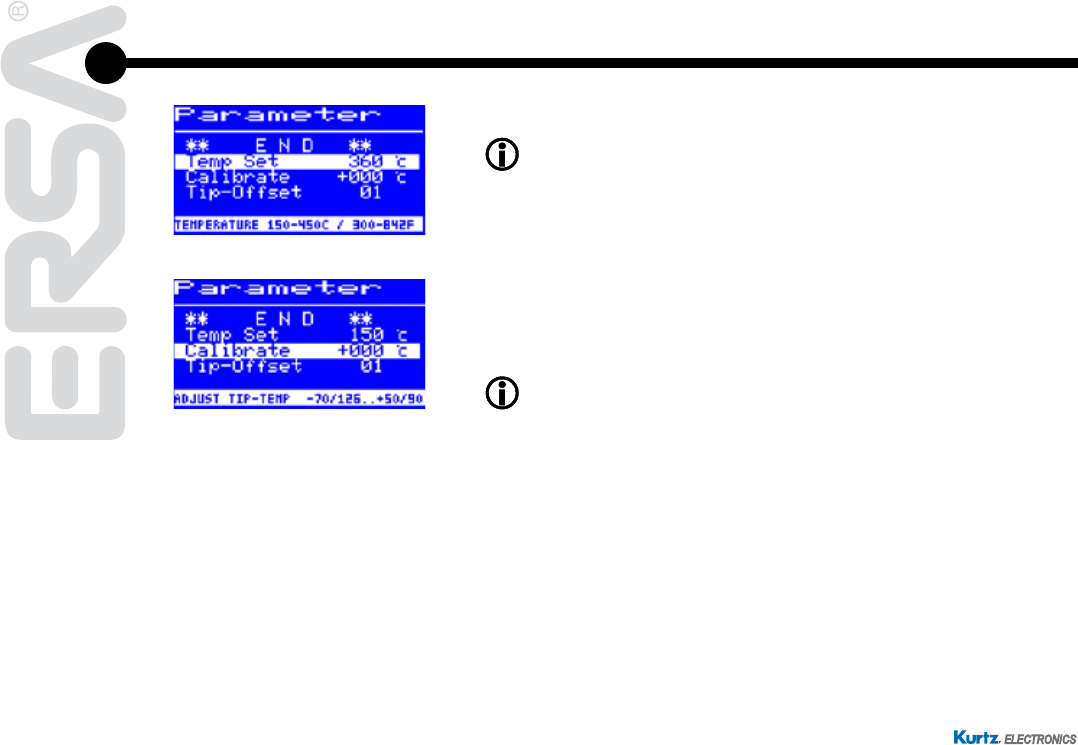

6.3.2 Set temperature
The set temperature is the desired soldering tip temperature.
In the work mode, the soldering tip temperature can be directly
changedbyturningthei-OP.Conrmthisbypushingthei-OP.
6.3.3 Calibration temperature
Use this function to calibrate the soldering tip temperature. It makes it possible to
adjust the display value and actual tip temperature. The adjustable calibration range
is -70...+50°C/-126...+90°F.
The exact calibration procedure is described in chapter 6.3.5. “i-CON 1 Calibration”.
If you do not have a corresponding measuring unit for this measure-
ment,pleaseenter“0”intothisparametereld.
