6.3 Parameter mode
The following settings can be made in parameter mode:
• Nominal temperature (150-450°C/302-842°F)
• Calibration temperature (-70…+50°C/-126…+90°F)
• Tip offset (Function reserved)
• Energy function (3 stages)
• Standby-Time (0-60min)
• Standby-Temperature (150-300°C).
Please proceed as follows to activate the parameter mode:
■
Hold the i-OP depressed for about 2 seconds, or press the i-OP two
times quickly in succession.
The parameter mode is now activated. The desired parameter is selected by turning
on the i-OP.

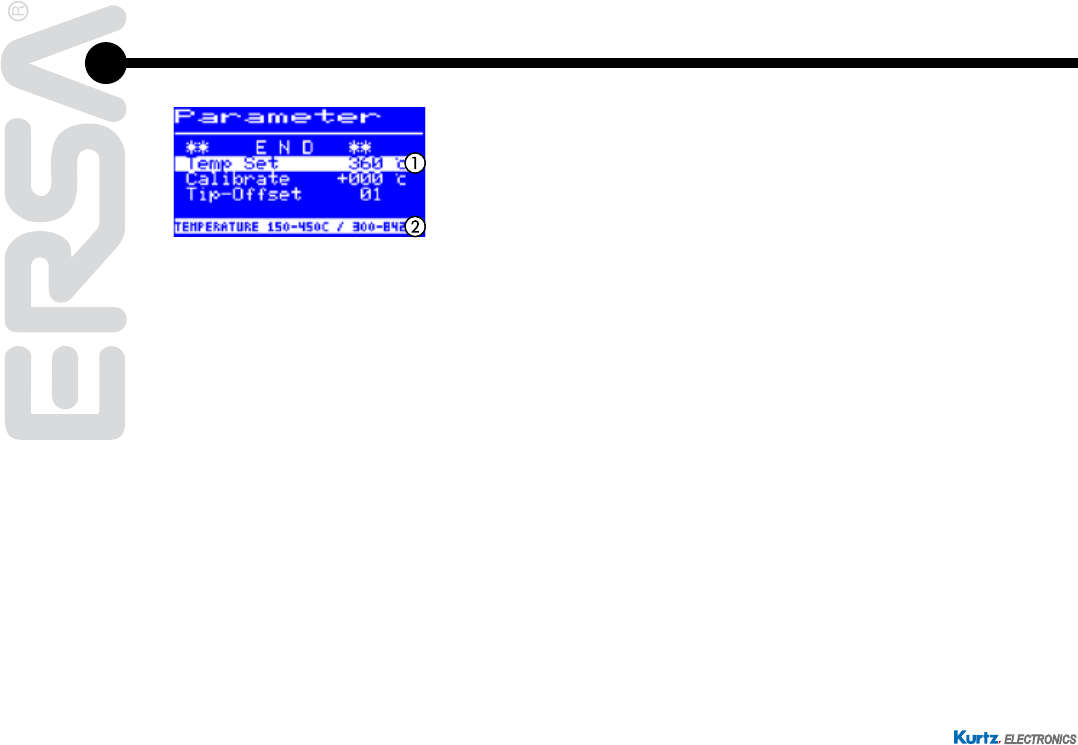

For the selected parameter a, a help text b is displayed in the last line which gives
additional explanations or numerical ranges.
