i-CON 1 / 15
3BA00180 • 28.04.2008 • Rev. 1
Operating instructions
6.2 The Work mode

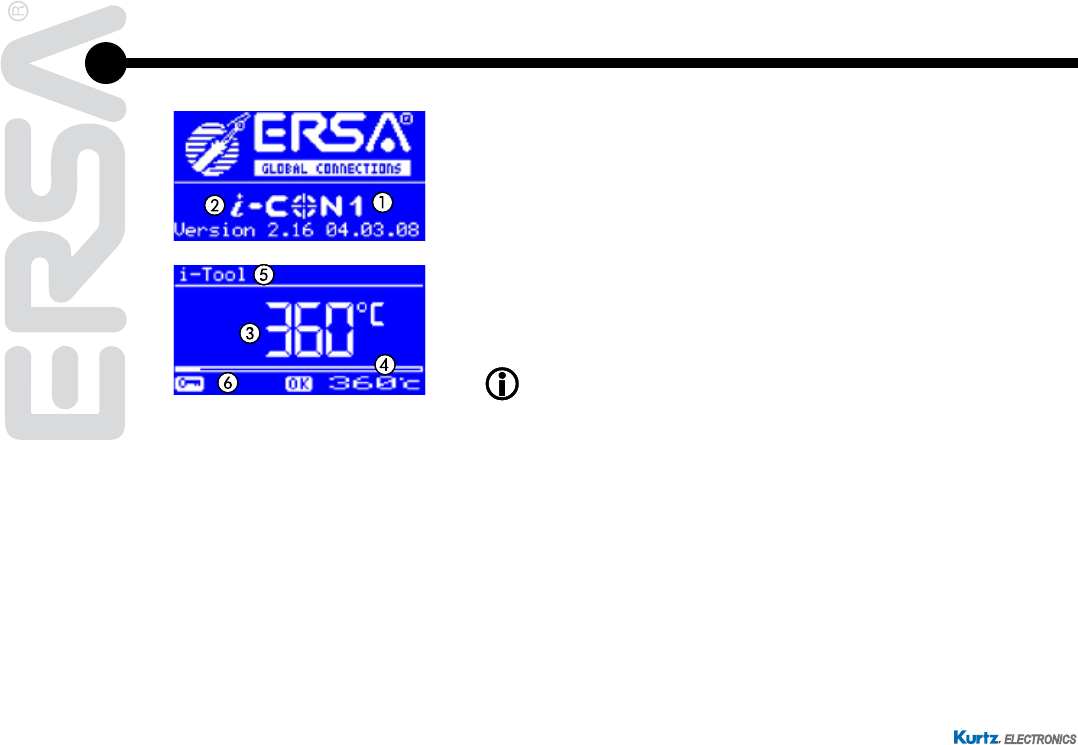

After the station has been switched on, the switch-on dialog is displayed for approx.
2 seconds. This dialog shows the station name a and the software version b of
the i-CON 1. The station will then automatically change to work mode with the pa-
rameters:
• actual value
c
• set value and possibly standby status
d
• connected soldering tool (i-Tool in our example)
e
• password lock active (KEY-symbol)
f
In the work mode, the soldering tip temperature can be directly changed by turning
thei-OP.Conrmthisbypushingthei-OP.
If the password lock is activated, the set value can only be changed
via the parameter mode. The password is needed.
6.2.1 Software version
Theseoperatinginstructionsrefertormware2.16.Forservicepurposesthe
number of the software may be of help, you should therefore make a note of it and
keep it ready, as you may need it when asked by our Service Department.
