Product Description Part 2

RBS 210 6 and RBS 2206Radio Configurations
P008504B
TDMA RBS
TX/RX
TDMA RBS
TX/RX
dTRU Based
RBS
TX/RX TX/RXTX/RX TX/RX
Recommendation:
No Co-siting!
TDMA RBS
TDMA RBS

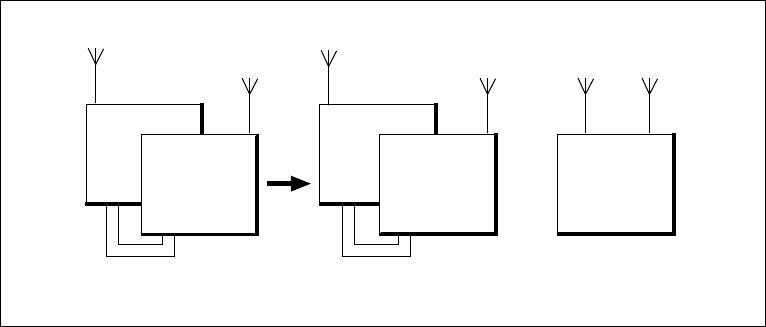

Figure 25 Two Separa te Duplex Antennas
8.4 One RX and One Duplex Antenna
If the original antenna arrangement is TX/RX + RX, the recommendation differs
for configurations where the duplex filter is mounted internally, without the
possibility to access the TX and RX ports separately, and configurations w here
the RX path is accessib le.
Internal Duplex Filter
If th e duplex filter is internal and the RX path is not accessib le, the
recommendation is to add one antenna and rebuild the configuration in the
sam e way as in the case with T X + RX + RX in Section 8.1 Separate TX and
Two Separate RX Antennas on page 56.
58 (62)
E
N/LZT 720 0318 Uen R5A
