RBS 2207
Footprint
Unit of measurement: mm
P010951A
(RBS 2202)
FRONT
99
400
598
220
45
320
400
o 20x75
RBS 2206 / RBS 2207

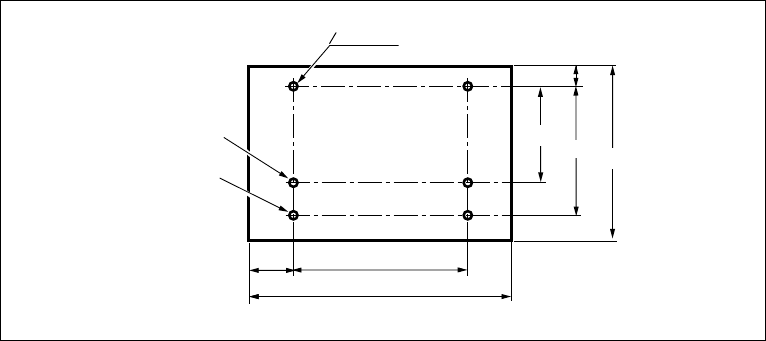

Figure 3 Hole pattern overview
The RBS 2207 has the same footprint as the RBS 2202 and 2206 cabinets.
The base frame can be used as a template to mark new holes. If an RBS
2202 or an RBS 2206 is being replaced by an RBS 2207, the holes for th e old
cabinet can be used for the new cabinet.
4 Environment
The RBS 2207 is designed to operate within limits stated for climatic
requirements, and also to have a limited effect on the environ ment.
4.1 Operating Enviro nment
The climatic requireme nts the RBS 2207 has on the site are shown in the
table below.
