Product Description Part 2

RBS 2207
Layout for R BS Cabinets
P007781A
1000
1000
Unit of measurement: mm
RBS
RBS
RBS
BBS
a=130
o

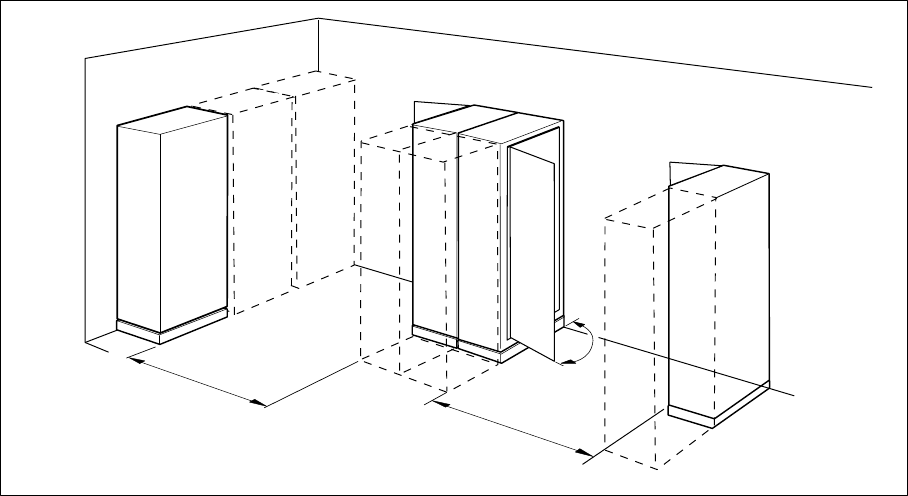

Figure 2 Floor layout and spa ce requirements
The RBS cabinets and battery back-up system (BBS) racks are mounted on
the floor, and may be positioned against a wall, back t o back, or free standing
without contact with other cabinets.
Additional cabinets and racks c an be positioned to the left or right of the first
installed cabinet. However, expansion to the right is recommend ed in o rd er
to follow the same global standard.
A di stance of 1000 mm in front of the cabinets and racks for ma intenance work
is recommended.
Note: Spa ce for fut ure expansion must be considered as indicated in the
dotted line in the figure above.
Earthquake Requirements
If the RBS cabinet is to fulfill the requirements for ea rthquake protec tion, the
space between w all and cab inet is to be at least 100 mm and between cabinets
at le ast 150 mm.
