Product Description Part 2

RBS 2207
Free Spac e above the RBS Cabinet
P010922A
1300
Min. 1600
Min.250
400
600
Min. 300
1350

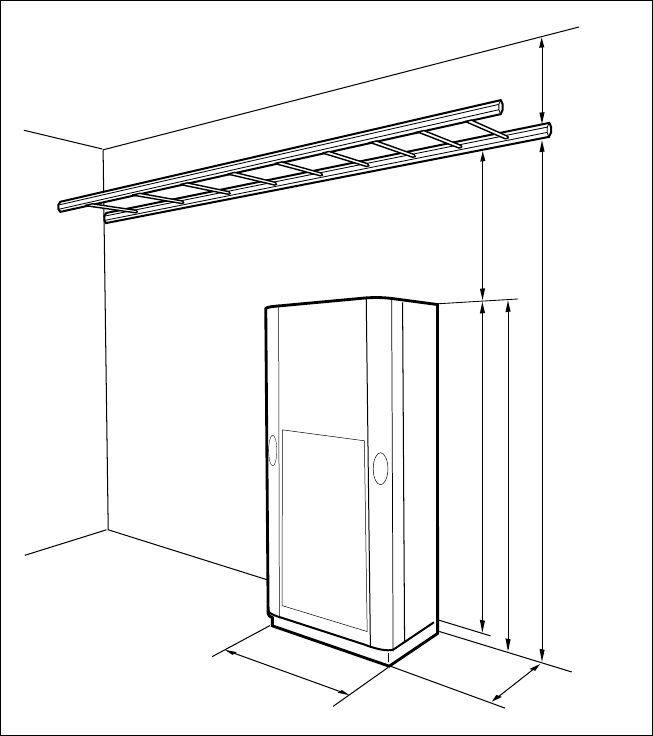

Figure 1 RBS 2207, free space above the cabinet
The recommended distance between the cabinet and cable ladder is 250 mm.
A shorter distance makes it difficult to exchange fans and may restrict the air
flow. A space of 300 mm is recommended above the cable ladder, in order to
simplify the cable installation work.
The door projects 70 mm in front of the cabinet.
5 (24)
EN/LZT 720 0134 Uen R3A
