Product Description Part 2

RBS 2207

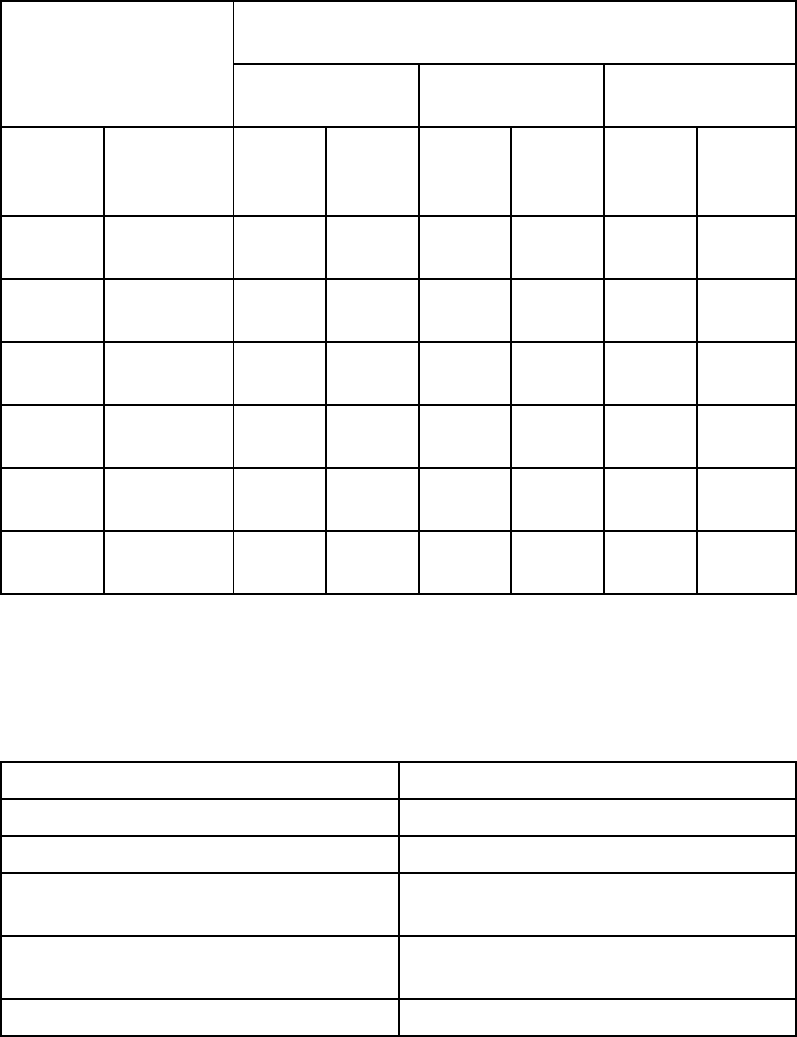

Table 4 Compliance boundary dimensions for the general public (GP) and
occupational (O) exposure for typical configurations.
Dimensions of cylindrical c ompliance boundary in
meter (m)
Diameter Height Distance
behind
Fre-
quency
(MHz)
RBS con-
figuration
GP O GP O GP O
900 3x2 un-
combined
7 3 1.7 1.4 0.1 0.1
1800 3x2 un-
combined
5 1 1.6 1.4 0.1 0.05
900 3x2
combined
4 1 1.5 1.4 0.1 0.1
1800 3x2
combined
2 0.5 1.4 1.4 0.1 0.05
900 3x1 comb.
TCC
6 3 1.7 1.4 0.1 0.1
1800 3x1 comb.
TCC
5 1 1.6 1.4 0.1 0.05
Compliance distances to the sid e of the antenna for occupational exposure
are 0.15 m for all configurations above. For ch aracterist ics of an antenn a
recommended for typical configurations of an RBS 2207, see Table 5.
Table 5 Characte ristics for a typical antenna (KRE 101 1916/1)
Antenna spe cifications X-pol macro RBS sector antenna
Antenna height 1.3 m
Horizo ntal half-power beam width 65 degrees
Ve rtical half-power beam width 14.5 degrees at 900 MHz, 7.8 d egrees
at 180 0 MHz
Antenna gain 14 dBi a t 900 MHz, 16.5 dBi at 1800
MHz
Downt ilt 0 de gr ees
The maximum powe r fed to the antenna, as a function of the number of
transceiver units (TRUs ) per antenna and maximum power (including tolerances
and transmission loss) per TRU, for RBS 2207, are given in Table 6.
