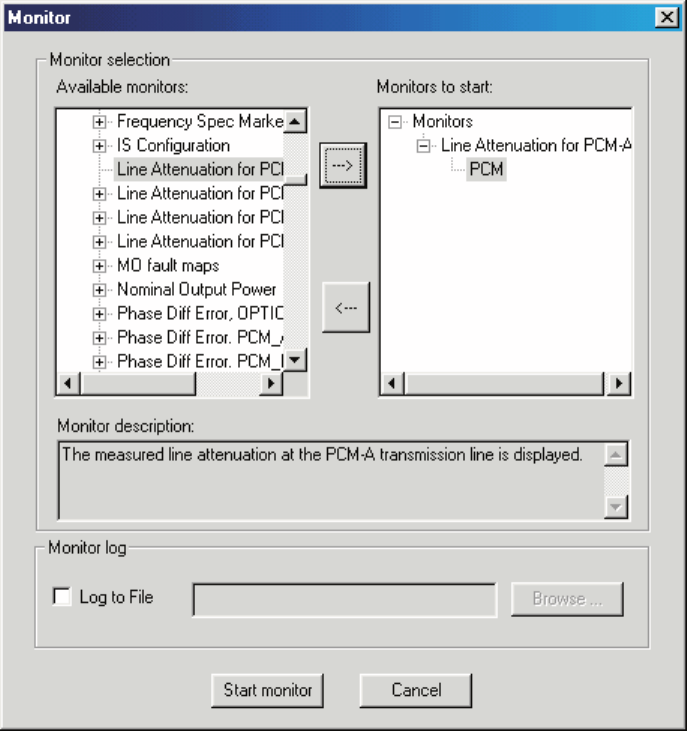

Figure 63 Monitoring Cable Attenuation
6. Click on Start Monitor and read the value of the cable attenuation. The
displayed value is given in deci dB (10 deci dB = 1 dB). Make a note of
the value in the test record.
Whe
n configuring the IDB for RBS 2 and RBS 3, follow the instructions below.
For RBS 2 and RBS 3:
7. Set LBO A (C) on RBS 2 (RBS 3) to ‘‘Long h. ALBO, 0 dB’’.
8. On the Configuration menu, click Install IDB.
9. On the Maintenance menu, click Monitor.
10. In the Available monitors box, select ‘‘Line Attenuation for PCM-A’’ (C) and
click → to add ‘‘PCM’’ in the Monitors to start box.
1
