Customer Interface
(Far End)
RBS
Measured cable attenuation
Maximum input
signal level
A(C) B(D)
Figure 61 System Parameters for Defining LBO Parameters Automatically
to Long Haul
1. On the Configuration menu, click Define and PCM to open the Define

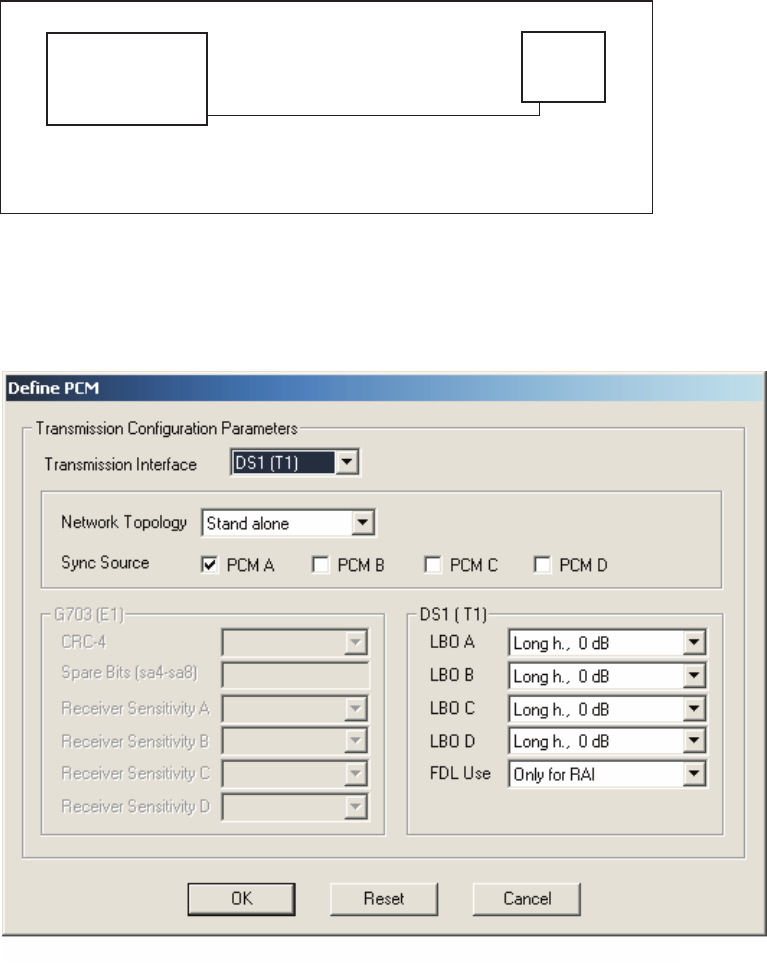

PCM window. See figure below.
P010223A
Figure 62 Defining Transmission Parameters
2. Use the table and instructions below to set the parameters.
3. Click OK when all parameters are set.
