RBS 2109 User’s Guide

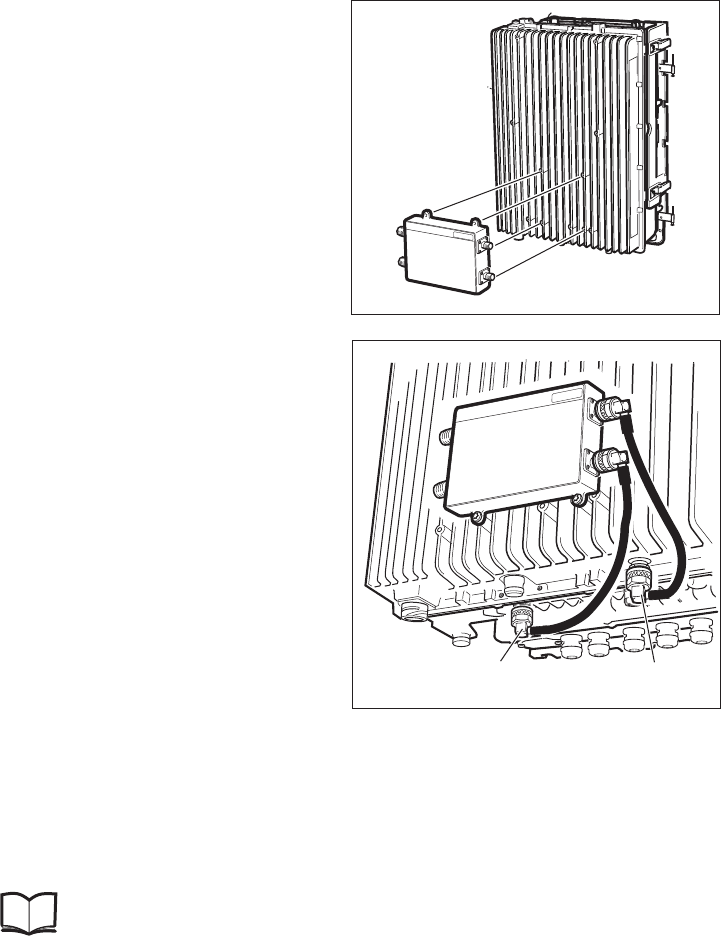

Install the RXBP on the RRU

and tighten the screws.

P010175A

RXBP

RX 2

RX 1

RXBP 2

RXBP 1

Connect the fi

rst cable from

connection po

rt RXBP 1 on the

RXBP to conne

ction port RXBP

1 on the RRU. C

onnect the

other cable

from connection port

RXBP 2 on the

RXBP to RXBP

2 on the RRU.

P010172A

RXBP 1

RXBP 2

RXBP

RX 1

RXBP1

RXBP 2

Connect the RX antenna cables to connection port RX 1 and RX 2 on

the RXBP, and tighten with the appropriate torque wrench. See Table

9 on page 41.

For more information about antenna connections, see:

Site Installation Documentation

5.4.11 Installing the Integral Omni Antenna (If Applicable)

This section describes how to install the integral Omni Antenna on the RRU.

1. Remove the RRU earthing cable if it has been previously installed. See

Section 5.4.8 Connecting Earth Cables on page 64

2. Mount the Omni Antenna bracket on top of the RRU, and tighten the captive

screws.
