RBS 2109 User’s Guide

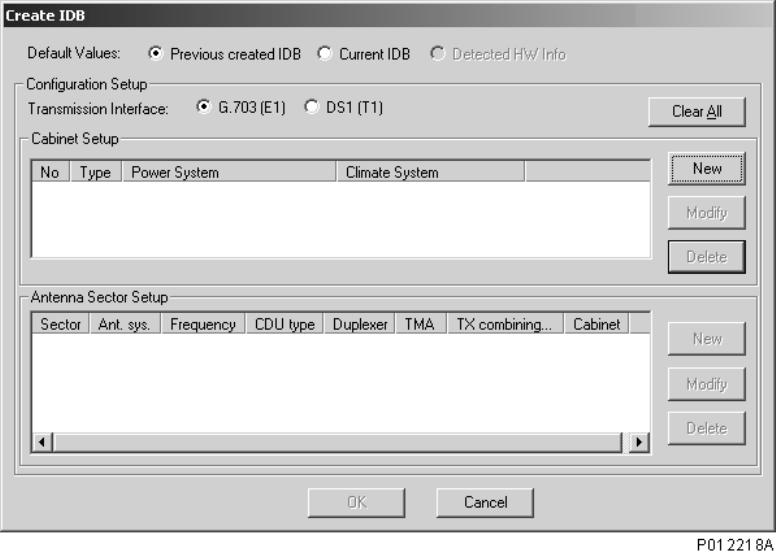

Figure 51 Creating IDB
Defining Cabinet Setup
1. To add cabinets to the Cabinet Setup box, click New to open the Define
Setup for Cabinet window.
2. In the Cabinet Type box, select the RBS ‘‘2109’’.
3. In the Define Master Cabinet Setup window, select the applicable master
cabinet configuration and click OK:
– IXU
– IXU/RRU
4. Select the power system used:
– 230/115 V AC, no backup
– 230/115 V AC, external battery
– – 48 V DC
5. If an RRU is present in the cabinet, select the climate system used:
– Cooling by convection
– Fan unit
