RBS 2109 User’s Guide
7.6.1 Connecting OMT
This section describes how to connect the OMT physically to the RBS.
1. Remove the lid from the OMT port on the IXU.
2. Connect the OMT cable from the PC serial port to the OMT port on the
right-hand side of the IXU. If an extended OMT cable is connected to the
OMT port, then connect the OMT cable to the end of the extended OMT
cable.
P010276B
Local/Remote
IXU temp.
AC power on
DC power on
Tra nsmission OK
Por t A
Por t B
Por t C
Por t D
OMT Cable

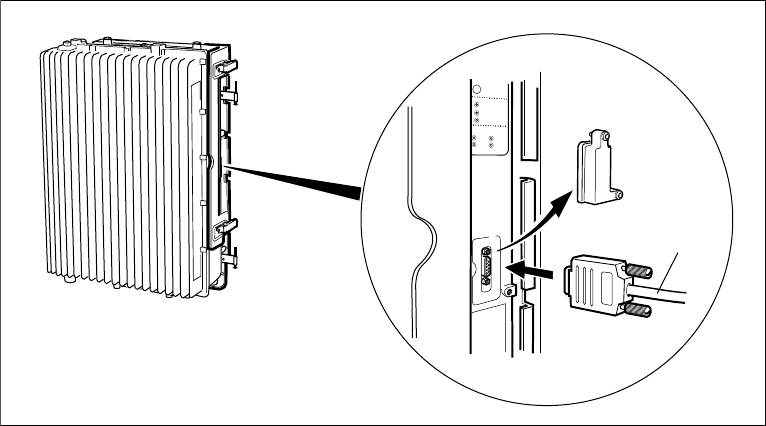

Figure 50 Connecting OMT to IXU
3. Start the OMT.
7.6.2 Reading IDB
This section describes how to read the IDB in the OMT to check if the values of
the IDB parameters are correct.
1. On the RBS 2000 menu, click Connect to connect the OMT logically
to the RBS.
2. On the Configuration menu, click Read IDB.
3. On the Configuration menu, click Display and then Information to enter
the Display Information window.
4. Select IDB and click Run. Check the parameters listed in the table below.
1
08
E
N/LZT 720 0090 Uen R1A 2004-09-17
