RBS 2109 User’s Guide
3

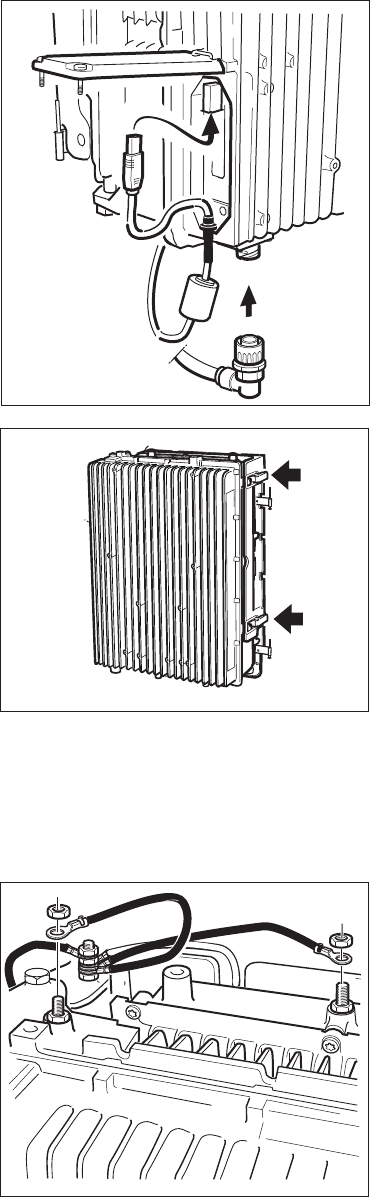

Open the left side cover on the
RRU, connect the Y link cabl,e
and close the cover. Connect
the AC/DC cable.
P010173B
4
Close the RR
U using the clasps.
P010125A
5.4.8 Connecting Earth Cables
This section describes how to connect the earth cables to the RRU and the IXU.
1
Connect the earth cables from
the earthing point to both IXU
(master) and RRU.
P010228A
