User's Manual Part 2

RBS 2109 User’s Guide
P011353A

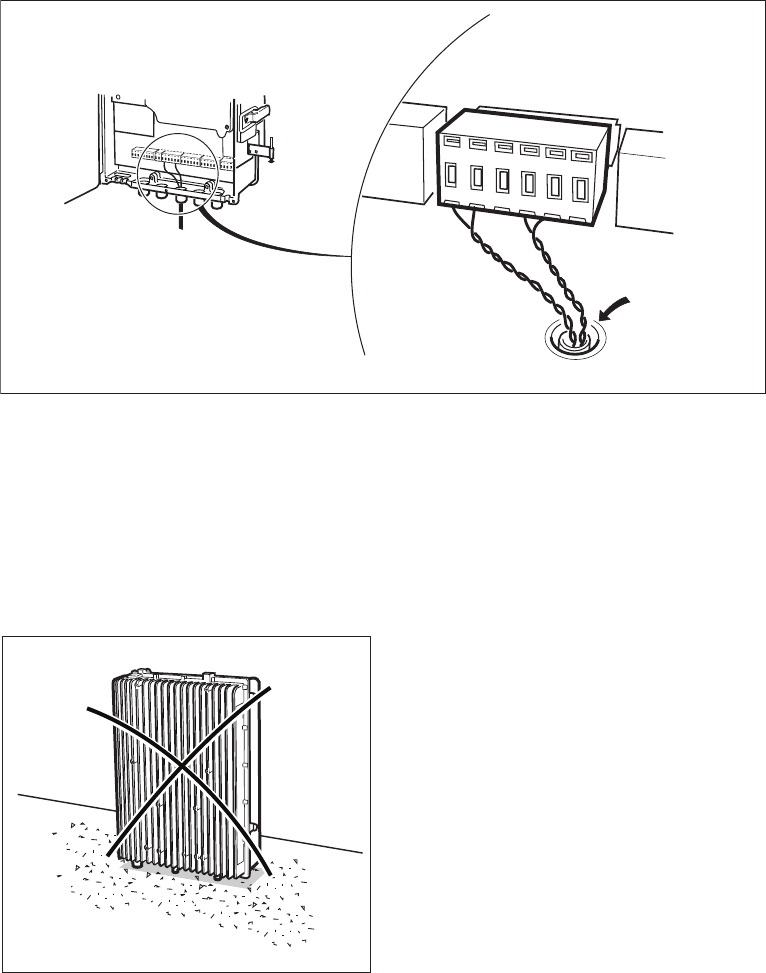

Figure 25 Earthing Outer Shield Only
5.4.7 Installing the RRU
This section describes how to install the Remote Radio Unit (RRU).
Note: To avoid damage, do not place the RRU on its connectors, see Figure
below.
P010470A
Figure 26 Do Not Place the RRU on its Connectors
Note: Do not install any equipment on the RRU before mounting it on the MBU.
6
2
E
N/LZT 720 0090 Uen R1A 2004-09-17
