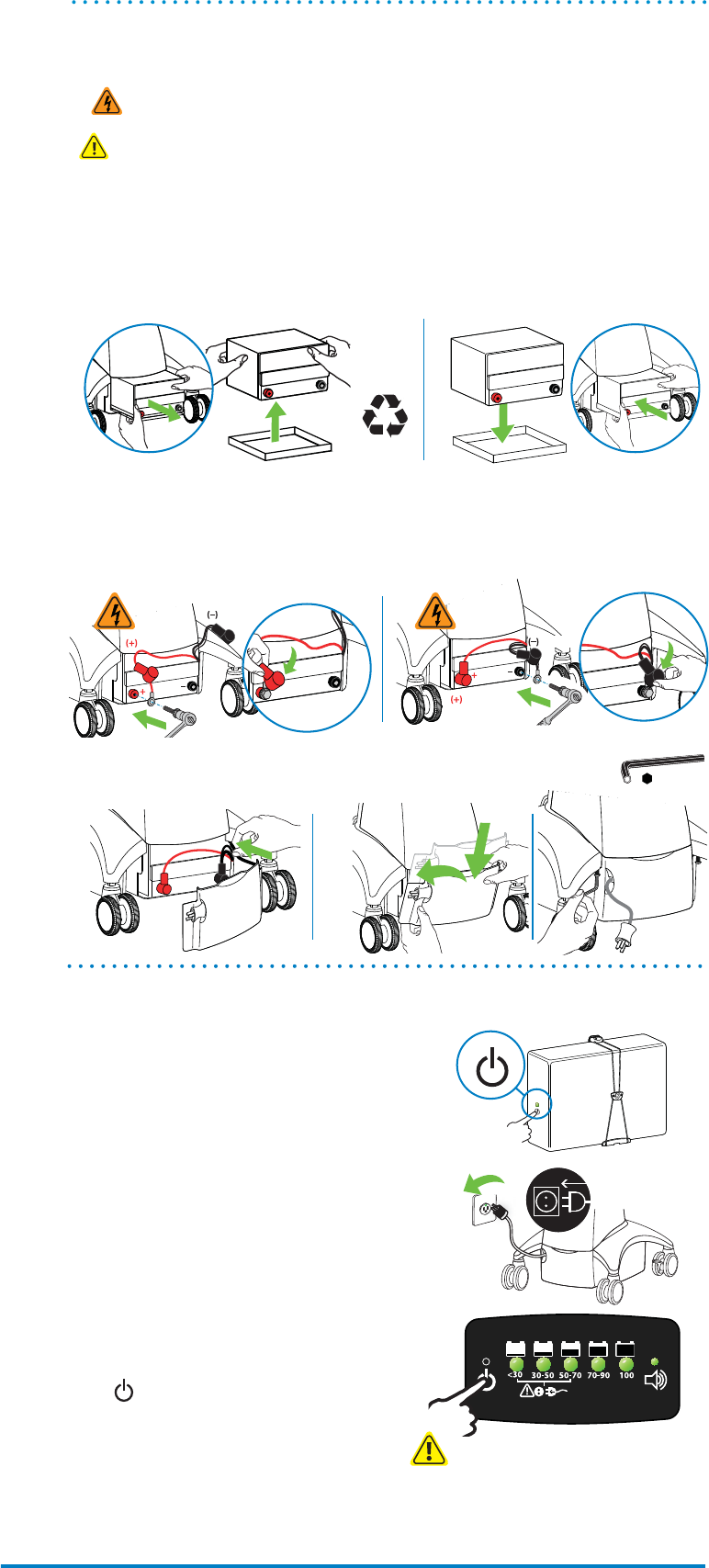

Battery Replacement
*
Follow LONG TERM Storage Steps (a) - (i) to remove existing battery then continue with steps (k) - (p)
below, to connect the replacement battery.
k After removing battery from cart, lift out of tray. Recycle battery or contact Ergotron for proper
battery disposal guidelines.
l Place new battery in tray; insert battery into cart.
10mm
m Remove boot to expose Red (+) connector. Connect Red (+) lead to battery with terminal bolt and
wrench. Connect Red lead BEFORE Black lead! Be careful not to contact tools between terminals on
battery and metal chassis. Place boot on Red terminal.
n Remove boot to expose Black (-) connector. Connect Black (-) lead to battery with terminal bolt and
wrench. Connect Black lead AFTER Red lead! Be careful not to contact tools between terminals on
battery and metal chassis. Place boot on Black terminal.
Red
Red
Black
Black
o Plug-in cord reel cable.
p Attach cover to cart and tighten screws.
10mm
1/8"
lk
nm
po
BATTERY
LEAD
WARNING: Only Ergotron-speci ed batteries may be used in the StyleView Power System.
Please call customer care for details.
Do not replace the batteries while cart is located in an oxygen rich or hazardous environment.
Sparking may occur.
Replacing Battery
- SHORT TERM
*
If the Power System will be idle for up to three
months, the battery should be fully charged before
storage and recharged during storage.
If the Power System will be idle for 3 months or
more, the battery should be removed from the cart
and stored, follow LONG TERM Storage instructions!
a Turn o all mounted equipment.
b Plug power cord into appropriate wall outlet
to fully charge battery to 100% (all RUI indicator
lights will be illuminated). Power system must be
fully charged before storing!
c Once battery has been charged to 100%, turn
power system o by holding down the AC Outlet
Power
on the RUI for 1 - 3 seconds. Power
light will shut o .
d Leave power cord plugged into appropri-
ate wall outlet if possible. If wall outlet is not
available for cart storage, remove front cover,
disconnect RUI cables from jacks located on side
of outlet box, and replace cover. If cart is not
plugged into a wall outlet while stored, recharge
battery once a month.
NOTICE: Warranty on fully charged bat-
teries left in an unused state for more than three
(3) consecutive months is automatically void.
Warranty on fully discharged batteries left in an
unused state for more than three (3) consecutive
days is automatically void.
a
c
Power System Storage
b
Power System Storage
Set-up is complete - your Cart is ready to go!
The following pages contain important guidelines for safe operation and maintenance
of the SV Cart and the power system.
