Specifications

888-SV-22FN-00 rev C
4
8
China
220-240VAC
50 Hz
An Outlet
box cover
is not
required on
this system
Europe,
Australia,
and
New
Zealand
220-240VAC
50 Hz
2x
8-32 x 1/4"
United
Kingdom
and
Singapore
220-240VAC
50 Hz
2x
8-32 x 1/4"

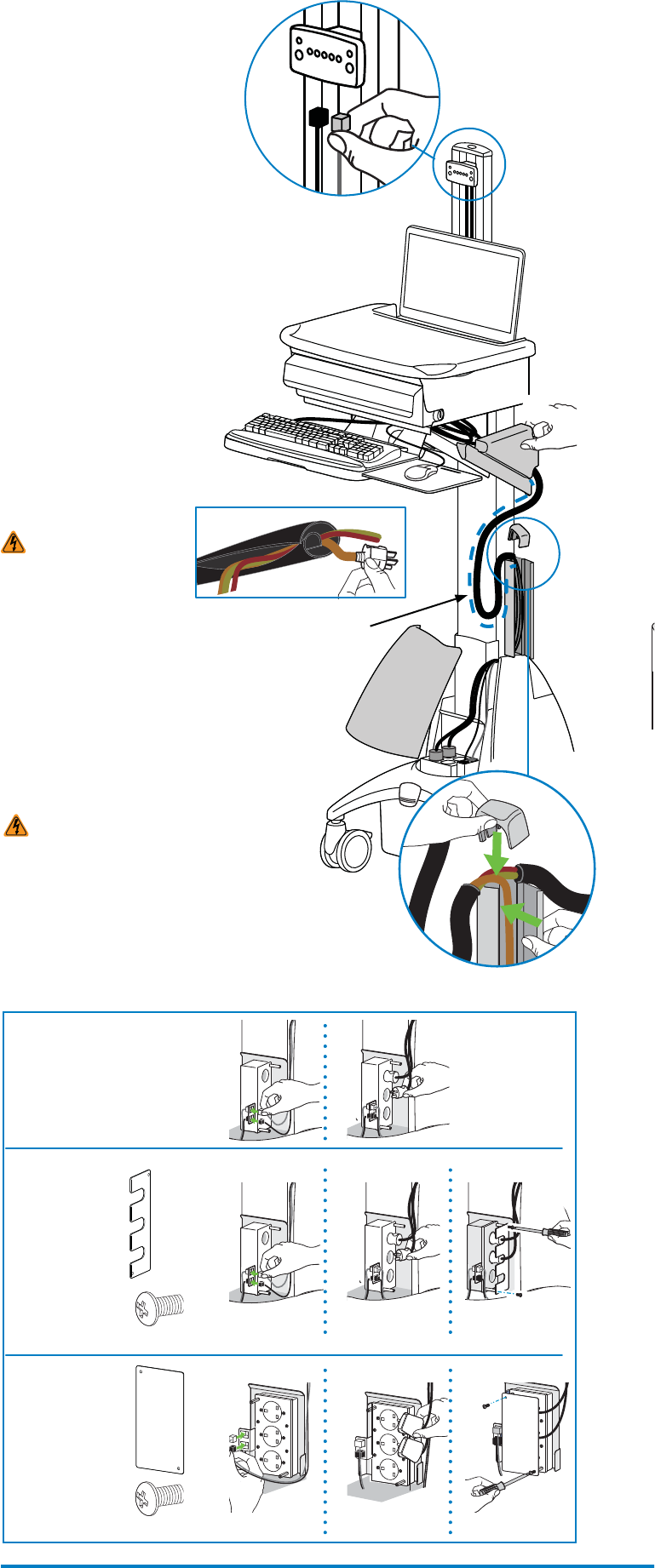

Route Cables
6
Outlet Con guration Table
Cable Routing
20"
(508 mm)
g
c
e
d
f
CAUTION: Observe maximum watt ratings,
do not connect equipment that will draw beyond the
300 watt capacity of the power system in your StyleView
Cart. Failure to comply with this safety hazard may result
in equipment damage.
(Step 6f)
c Connect one end of the RUI cables to the
RUI that is mounted to the riser. Connect
grey cable to grey jack and black cable to
black jack.
d Remove side covers of cable box mounted
under the drawer. Route the RUI and computer cables
down riser and into the cable box. Route keyboard and mouse
cables into the cable box. Use cable box to store excess cable and
power bricks.
e Route cables out of cable box to cable channel. Bundle the length of
cables from cable box to cable channel inside one 20" (508 mm)
length of the provided  exible tubing.
f Route the RUI cables along with the equipment
power cords, down the channel to the outlets
under the front cover. Since outlet con gura-
tions vary from country to country, refer to
the Outlet Con guration Table, below to
identify instructions that relate speci -
cally to the outlet on your Cart. Con-
nect the RUI cables and plug-in the
power cords according to the
Outlet Con guration Table.
CAUTION: Route cables
on Cable Channel (right)
side of Cart only.
Do not
store power brick inside base
covers. Storing power brick
inside base covers may damage electrical wires
and interfere with riser operation, resulting in
damage to both Cart and mounted equipment
or injury from electrical shock.
g Close cable channel around wrapped cables
and replace cable box side covers. Move riser
up and down to ensure cables are routed prop-
erly and movement of the riser is not restricted.
Adjust if necessary.
*
Leave
about 20" (508
mm) of slack in
cables between
the cable box
and the cable
channel.
