Specifications

ManualsBrandsErgotron ManualsComputersStyleView Notebook Cart

888-SV-22FN-00 rev C

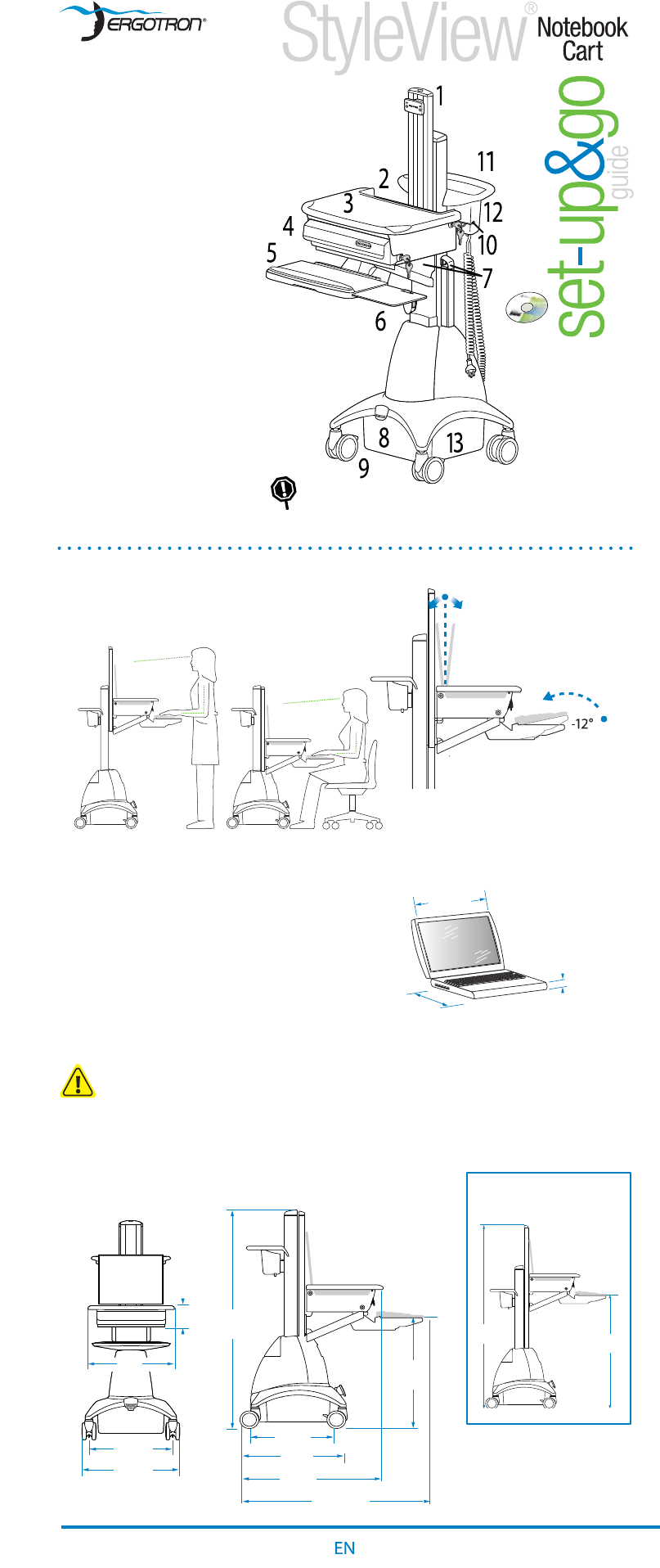

Features - SV22-92011

- SV22-92012

- SV22-92013

- SV22-92025

1 Riser

2 Notebook Enclosure

3 Worksurface

4 Electronic Autolock Drawer

5 Tilting Keyboard Tray and Wrist Rest

6 Right/Left Mouse Tray and Holder

7 Cable Management

8 Riser Lift Brake

9 Locking Front Casters

10 Scanner Holder Bracket

11 Ergonomic Rear Handle

12 Storage Basket

13 Power System - 220-240VAC, 50 Hz

55 Ah Battery

3 AC Outlets (300 Watts total)

Remote User Interface (RUI)

StyleLink Software CD & Cable

Coiled Power Cord

Please read all parts of this guide. When set-up is complete,

do not discard this guide. The guide should be  led in a secure

place for future reference.

For more information

on this or other Ergotron

products, visit our website:

www.ergotron.com

50.8"

1290 mm

22.3"

566 mm

38"

965 mm

28"

711 mm

18"

457 mm

24"

610 mm

Vertical Adjustment Range: 20" (508 mm)

Tilt: ±15° Viewing Angle

Based on a 10" High x 1/2"

deep Notebook

STAND SIT

18"

457 mm

21"

533 mm

v

157 mm

v

533 mm

70.5"

1791 mm

44"

1118 mm

Riser at Full Height

Riser in Lowest Position

432 mm

< 1.5

< 38 mm

12.5"

318 mm

Maximum

Notebook Size

Dimensions

Cart Speci cations - For Power System Speci cations see page 11.

Range of motion

CAUTION: The lift brake locks the vertical lift of riser during normal use but it DOES NOT increase

load capacity. DO NOT load riser with equipment totalling more than the maximum weight

capacity speci ed by Ergotron. Ensure optimum lift function by testing and if necessary, re-adjusting

tension whenever the weight mounted to the riser changes (i.e., equipment is removed or added). See

"Set Riser Lift Tension" adjustment instructions in step 7 on page 5.

Keyboard Tray Tilt: -12°

Weight capacities

Notebook 6-18 lbs 2.72-8.26 kg

Drawer 4 lbs 1.8 kg

Worksurface 2.5 lbs 1.1 kg

CPU Holder 25 lbs 11 kg

Keyboard Tray 2.5 lbs 1.1 kg

Mouse Holder .5 lb .23 kg

Scanner Holder .5 lb .23 kg

Basket 5 lbs 2.3 kg

StyleView

powered carts

provide electrical

AC power for

mobile point of

care computing

equipment in

a healthcare

environment.

Summary of content (13 pages)

PAGE 1
Features - SV22-92011 - SV22-92012 - SV22-92013 - SV22-92025 c 1 Riser 2 Notebook Enclosure 3 Worksurface 4 Electronic Autolock Drawer 5 Tilting Keyboard Tray and Wrist Rest 6 Right/Left Mouse Tray and Holder 7 Cable Management 8 Riser Lift Brake 9 Locking Front Casters 10 Scanner Holder Bracket 11 Ergonomic Rear Handle 12 Storage Basket 13 Power System - 220-240VAC, 50 Hz d e b a 55 Ah Battery b 3 AC Outlets (300 Watts total) c Remote User Interface (RUI) d StyleLink Software CD & Cable e Coiled Powe
PAGE 2
Mounting Equipment 1 • 9/16" • 3/8" (10mm) Prepare for cart set-up. a Gather tools for cart set-up. a b To prevent the riser from moving during set-up, lock riser by pushing the lift brake down. b 2 2 1 Remove anchor screws connecting riser to tower. a Make sure riser is locked (lift brake down), then remove the two capped screws anchoring the riser to the tower.
PAGE 3
Mounting Equipment ) Autolock Drawer Tips To Unlock Drawer - 3 methods • Key - turn counter clockwise 1/8 turn • Enter Master Code • Enter Personal Code Personal Code Master Code To Program Personal Code 1 Enter Master Code 2 Press 3 and 5 simultaneously (while blinking) 3 Enter new code - any series of five numbers New Code Master Code To Erase Personal Code 1 Enter Master Code 2 Press 3 and 5 simultaneously (while blinking) 3 Press 1 and 2 on number pad at the same time Master Code To Lock Drawer -
PAGE 4
Cable Routing 6 Route Cables c Connect one end of the RUI cables to the RUI that is mounted to the riser. Connect grey cable to grey jack and black cable to black jack. c d Remove side covers of cable box mounted under the drawer. Route the RUI and computer cables down riser and into the cable box. Route keyboard and mouse cables into the cable box. Use cable box to store excess cable and power bricks. e Route cables out of cable box to cable channel.
PAGE 5
Riser Lift Adjustment 7 a a Set riser lift tension. Unlock riser (lift brake up). b Move the riser up and down. If you feel excessive resistance within the range of motion, or if the riser does not stay in the desired position, the lift tension should be adjusted. b c c Remove tower cover. d Lift riser to highest position on tower. e Turn tension nut up or down as needed. f After adjustment, check lift tension by moving riser up and down (as described in step 7b).
PAGE 6
Battery Charging Cycle 10 Tracking battery power - the Remote User Interface (RUI) The RUI will alert you to the percentage of charge remaining in the cart battery with a series of steady or flashing red, yellow or green lights, and an alarm that can be set to beep or remain mute. Refer to chart for common RUI messages and how to respond to each.
PAGE 7
Set-up is complete - your Cart is ready to go! The following pages contain important guidelines for safe operation and maintenance of the SV Cart and the power system. Refer to our website for more information about the StyleView Cart and other Ergotron products. www.ergotron.com Battery Replacement Replacing Battery WARNING: Only Ergotron-specified batteries may be used in the StyleView Power System. Please call customer care for details.
PAGE 8
Power System Storage - LONG TERM * If the Power System will be idle for 3 months or more, the battery should be removed from the cart and stored, follow steps below. If the Power System will be idle for less than 3 months, follow SHORT TERM storage instructions! Four AA 1 Remove batteries from Autolock drawer. 2 Remove power system battery. b a a Turn off all mounted equipment. b Disconnect Power System from power source. c Turn power system off by holding on down the AC Outlet Power the RUI.
PAGE 9
Cart Safety Guidelines Equipment Changes and Cart Transfers Always anchor the riser to the tower BEFORE making changes to cart such as: • removing or adding equipment • preparing the cart for transit to another site See step 2 on page 2 for more information. Cleaning and Maintenance The following procedures are not guaranteed to control infection. The hospital infection control administrator or epidemiologist should be consulted regarding cleaning procedures and processes.
PAGE 10
Cart Ergonomics Working customize - to your size 1 Set monitor screen about one inch above eye level - unlock brake to allow riser to lift or lower as shown below. T T 2 Tilt screen for comfortable viewing and to reduce eye and neck strain. t 2 3 3 Pull keyboard tray forward and position mouse tray and mouse pouch on right or left, as needed. 4 4 5 Work with elbows bent at about 90° to minimize muscle strain.
PAGE 11
Cart Safety Guidelines $!.'%2 $/ ./4 2%-/6% 4()3 ,!"%, ELECTRICAL CORDS CAN BE HAZARDOUS -ISUSE #AN 2ESULT IN &)2% OR $%!4( BY %,%#42)#!, 3(/#+ 0LEASE 2EAD AND &OLLOW 0RODUCT -ANUAL )NSTRUCTIONS 4()3 )3 ! 0/,!2):%$ #/2$ (/30)4!, '2!$% /.,9 ./4% 'ROUNDING 2ELIABILITY #AN /NLY "E !CHIEVED 7HEN THE %QUIPMENT )S #ONNECTED 4O !N %QUIVALENT 2ECEPTACLE -ARKED h(/30)4!, /.,9v /R h(/30)4!, '2!$%v s s s s s s s s s s s s )NSPECT #ORD 4HOROUGHLY "EFORE %ACH 5SE $/ ./4 53% )& $!-!'%$ $O .
PAGE 12
visit our website: Troubleshooting Symptom www.ergotron.com Probable Cause Improper riser counterbalance. Riser moves up or down too easily or with difficulty; or equipment Mounted equipment on riser does not stay exceeds weight capacity. in desired position. Solution Follow "Set Riser Lift Tension" Adjustment procedure in step 7 on page 5. Compare weight of mounted equipment to recommended weight capacities in specifications section.
PAGE 13
C 888-SV-22FN-00 rev C 13
