CONTROLS AND INDICATORS
OBD2 11
CONTROLS AND INDICATORS

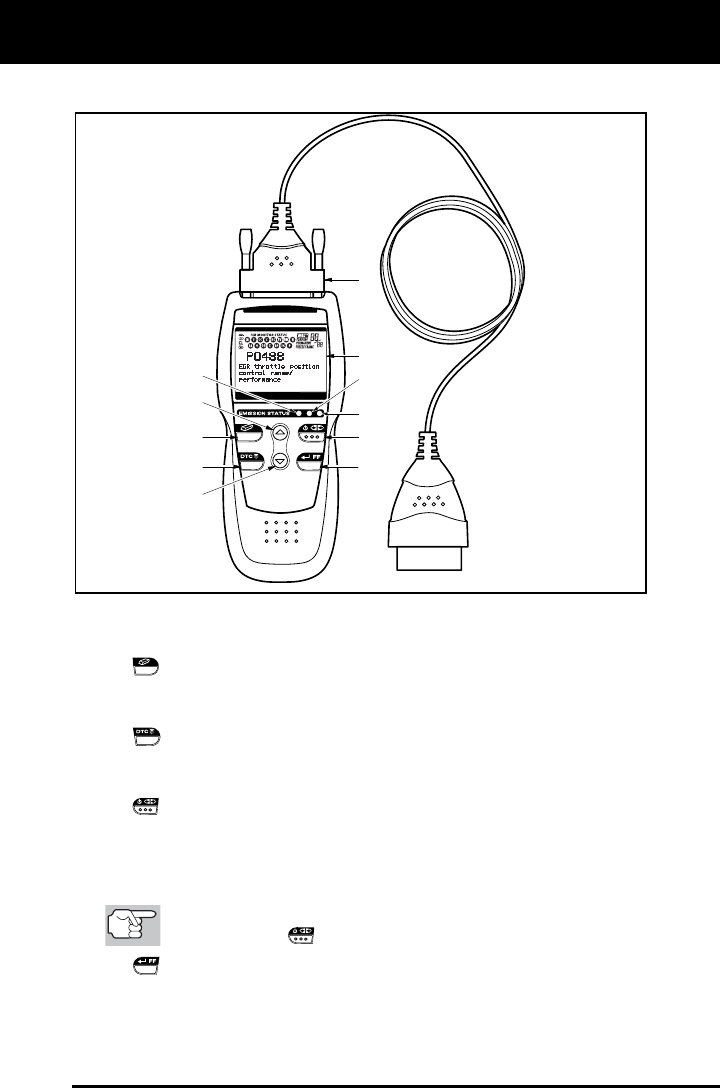

Figure 1. Controls and Indicators
See Figure 1 for the locations of items 1 through 11, below.
1.
ERASE button - Erases Diagnostic Trouble Codes (DTCs), and
“Freeze Frame” data from your vehicle’s computer, and resets
Monitor status.
2.
DTC SCROLL button - Displays the DTC View screen and/or
scrolls the LCD display to view DTCs when more than one DTC is
present.
3.
POWER/LINK button - When the Diagnostic Tool IS NOT
connected to a vehicle, turns the Diagnostic Tool “On” and “Off”.
When the Diagnostic Tool is connected to a vehicle, links the
Diagnostic Tool to the vehicle’s PCM to retrieve diagnostic data from
the computer’s memory.
To turn the Diagnostic Tool "On", you must press and hold the
POWER/LINK
button for approximately 3 seconds.
4.
ENTER/FREEZE FRAME button - When in MENU mode,
confirms the selected option or value. When retrieving and viewing
DTCs, displays Freeze Frame data for the highest priority code.
1
6
7
2
5
3
9
8
4
10
11
