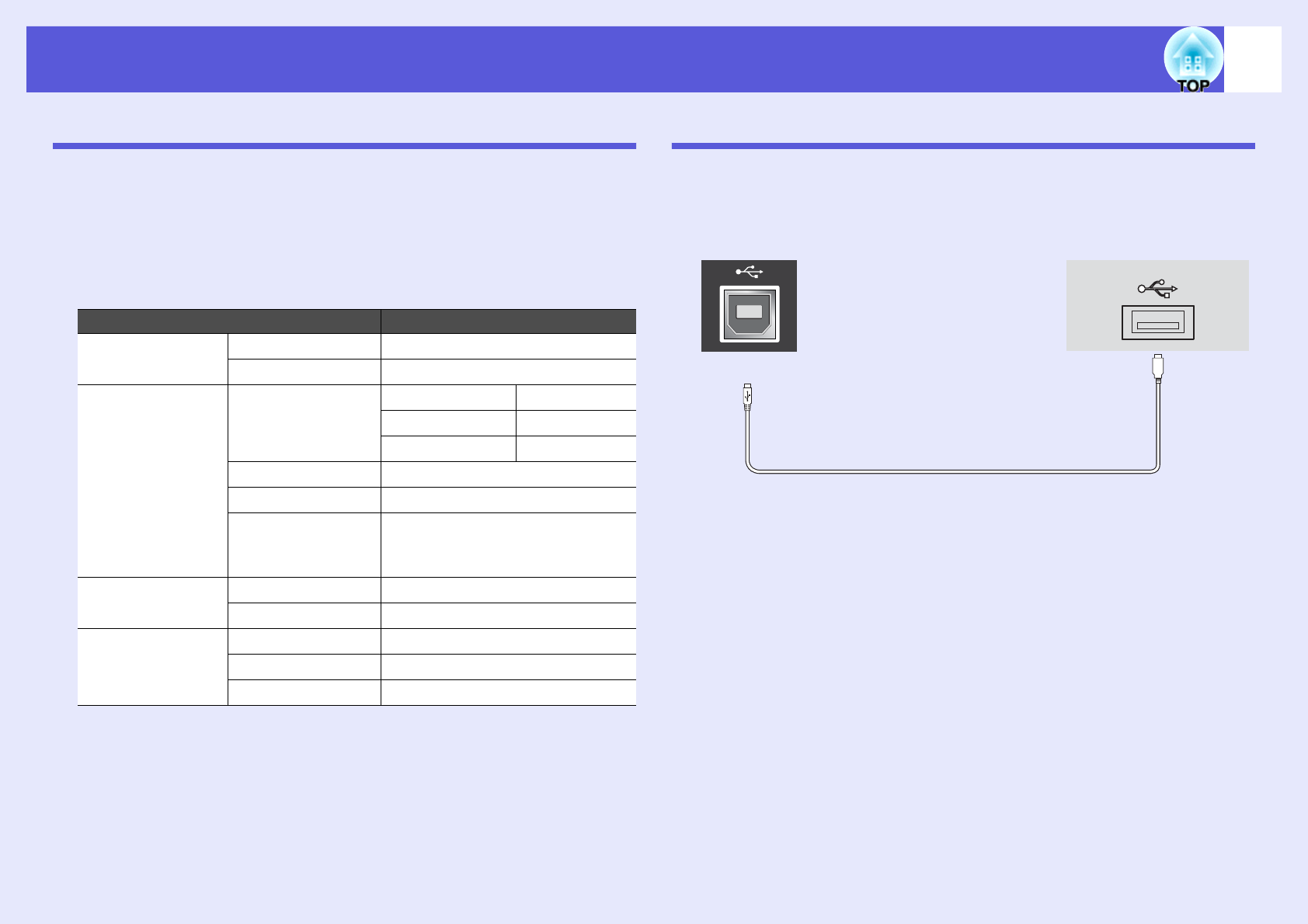

ESC/VP21 Commands
Command List
When the power ON command is transmitted to the projector, the power
turns on and it enters warm-up mode. When the projector's power has
turned on, a colon ":" (3Ah) is returned.
When a command is input, the projector executes the command and
returns a ":", and then accepts the next command.
If the command being processed terminates abnormally, an error message
is output and a ":" is returned.
* Add a Carriage Return (CR) code (0Dh) to the end of each command and
transmit.
Cable Layouts
f USB connection
Connector shape: USB (Type B)
* You cannot use the USB Type A port (EB-1735W/1725/1723 only) as a
USB hub.
Item Command
Power ON/OFF ON PWR ON
OFF PWR OFF
Signal selection Computer Auto
SOURCE 1F
RGB
SOURCE 11
Component
SOURCE 14
Video SOURCE 41
S-video SOURCE 42
EasyMP
(EB-1735W/1725/
1723 only)
SOURCE 50
A/V Mute ON/
OFF
ON MUTE ON
OFF MUTE OFF
A/V Mute
selection
Black MSEL 00
Blue MSEL 01
Logo MSEL 02
<At the projector> <At the computer>
(Type B)
