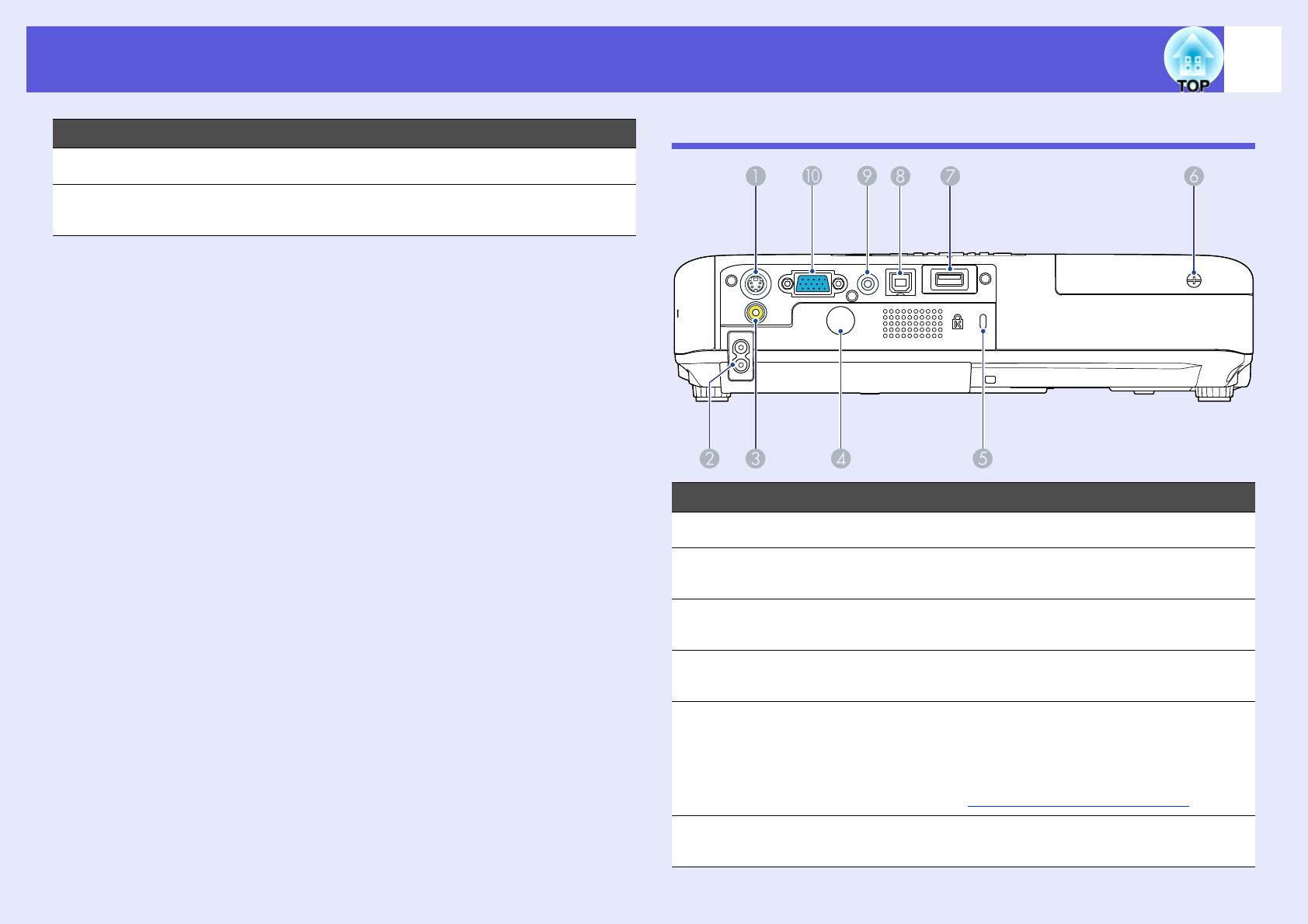

Part Names and Functions
8
Rear
L
Control panel s p.11
M
Lamp cover Open this cover when replacing the projector's
lamp. s p.80
Name Function
Name Function
A
S-video input port For S-video signals from video sources.
B
Power inlet Connects to the power cable. s Quick Start
Guide
C
Video input port For composite video signals from video
sources.
D
Remote receiver Receives signals from the remote control.
s Quick Start Guide
E
Security slot The security slot is compatible with the
Microsaver Security System manufactured by
Kensington. You can find details about the
Microsaver Security System on the Kensington
homepage http://www.kensington. com/
.
F
Screw hole for
the lamp cover
Screw hole to fix the lamp cover in place.
s p.80
