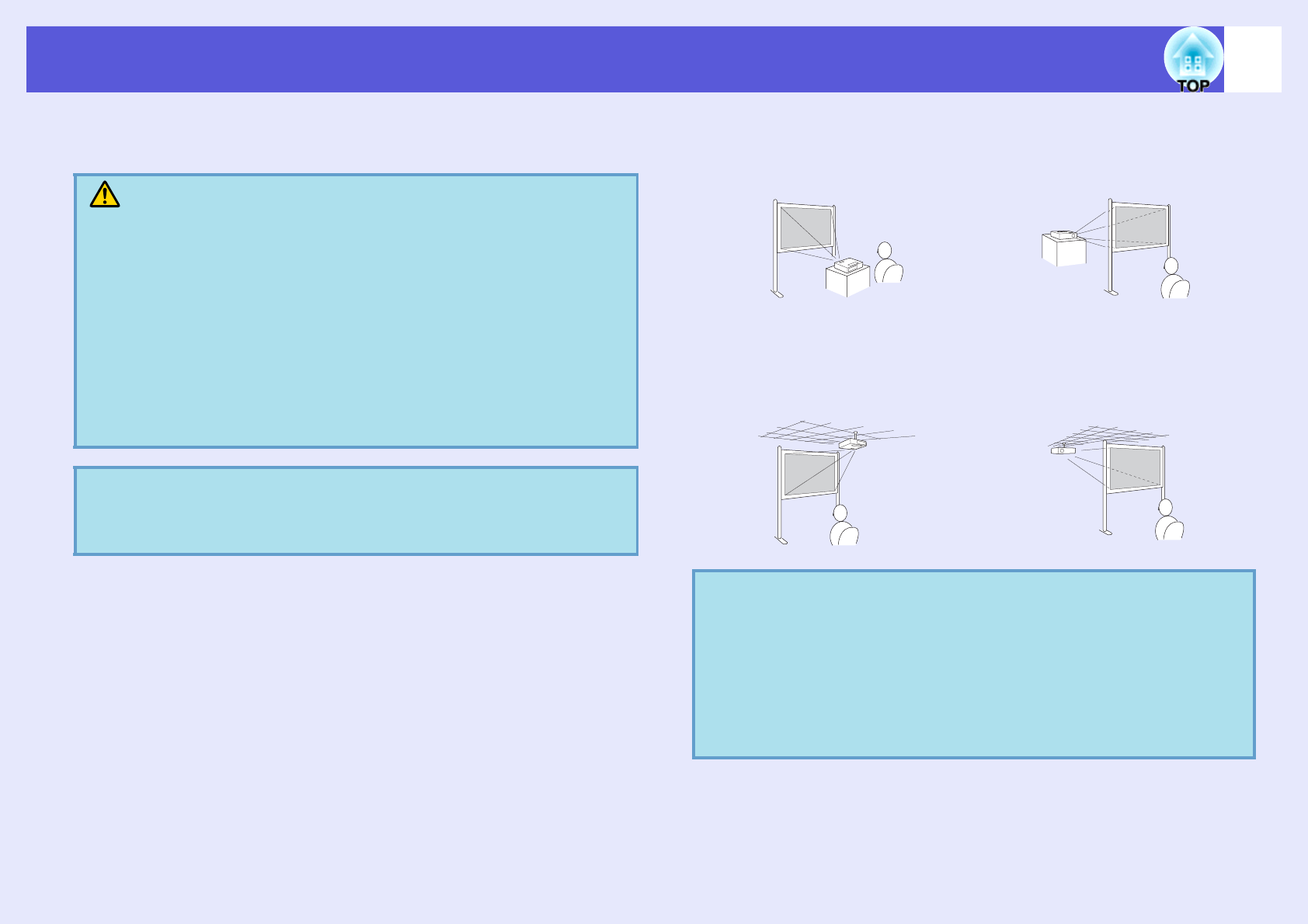

Installation Methods
The projector supports the following four different projection methods.
Install according to the conditions of the installation location.
Caution
• A special method of installation is required when suspending the
projector from a ceiling (ceiling mount). If it is not installed
correctly, it could fall causing an accident and injury.
• If you use adhesives on the ceiling mount to prevent the screws
from loosening, or if you use things such as lubricants or oils on
the projector, the projector case may crack causing it to fall from
its ceiling mount. This could cause serious injury to anyone under
the ceiling mount and could damage the projector.
When installing or adjusting the ceiling mount, do not use
adhesives to prevent the screws from loosening and do not use oils
or lubricants and so on.
Attention
Do not use the projector on its side. This may cause malfunctions to
occur.
• Project images from in front
of the screen. (Front
projection)
• Project images from behind a
translucent screen. (Rear
projection)
• Suspend the projector from
the ceiling and project images
from in front of the screen.
(Front/Ceiling projection)
• Suspend the projector from
the ceiling and project images
from behind a translucent
screen. (Rear/Ceiling
projection)
q
• An optional ceiling mount is required when suspending
the projector from a ceiling.
s
p.85
• You can change the setting as follows by pressing down the
[A/V Mute] button on the remote control for about five
seconds.
"Front"
W
"Front/Ceiling"
Set "Rear" or "Rear/Ceiling" from the configuration
menu.
s
p.45
