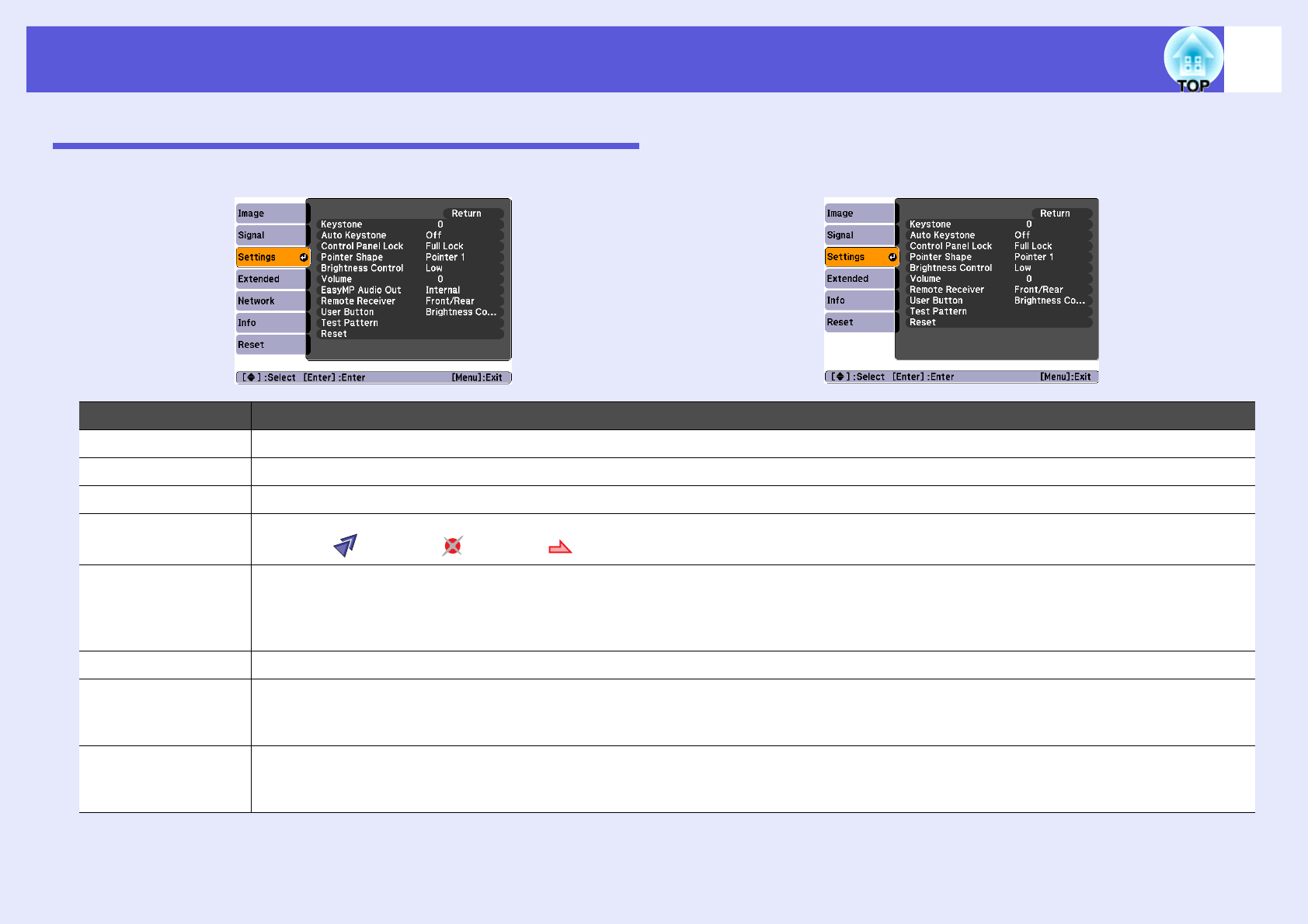

Settings Menu
EB-1735W/1725/1723 EB-1730W/1720
Sub Menu Function
Keystone You can correct keystone distortion in the vertical directions. s Quick Start Guide
Auto Keystone Turn "On" to perform Auto Keystone. (Executed only when "Front" is selected from the "Extended" - "Projection" menu.)
Control Panel Lock You can use this to restrict operation of the projector's control panel. s p.35
Pointer shape You can select the shape of the pointer. s p.24
Pointer 1: Pointer 2: Pointer 3:
Brightness Control You can set the lamp brightness to one of two settings.
Select "Low" if the images being projected are too bright such as when projecting images in a dark room or onto a small screen. When "Low" is
selected, the amount of electricity consumed and the lamp's operating life are changed as follows, and fan rotation noise during projection is
reduced. Electrical consumption: about a 25% decrease, lamp life: about 1.3 times longer
Volume You can adjust the volume. Setting details are saved for each image signal.
EasyMP Audio Out
(EB-1735W/1725/
1723 only)
When the input source is EasyMP, you can change audio input port to audio output port.
Internal: Audio input
External: Audio output
Remote Receiver You can limit the reception of the operation signal from the remote control.
When you want to prohibit operation by remote control, or if the remote receiver has a fluorescent light too close to it, you can make settings to
deactivate the remote receiver you do not want to use or that is experiencing interference.
