Restrictions in the Target Projector when Using Multiple Projectors
30

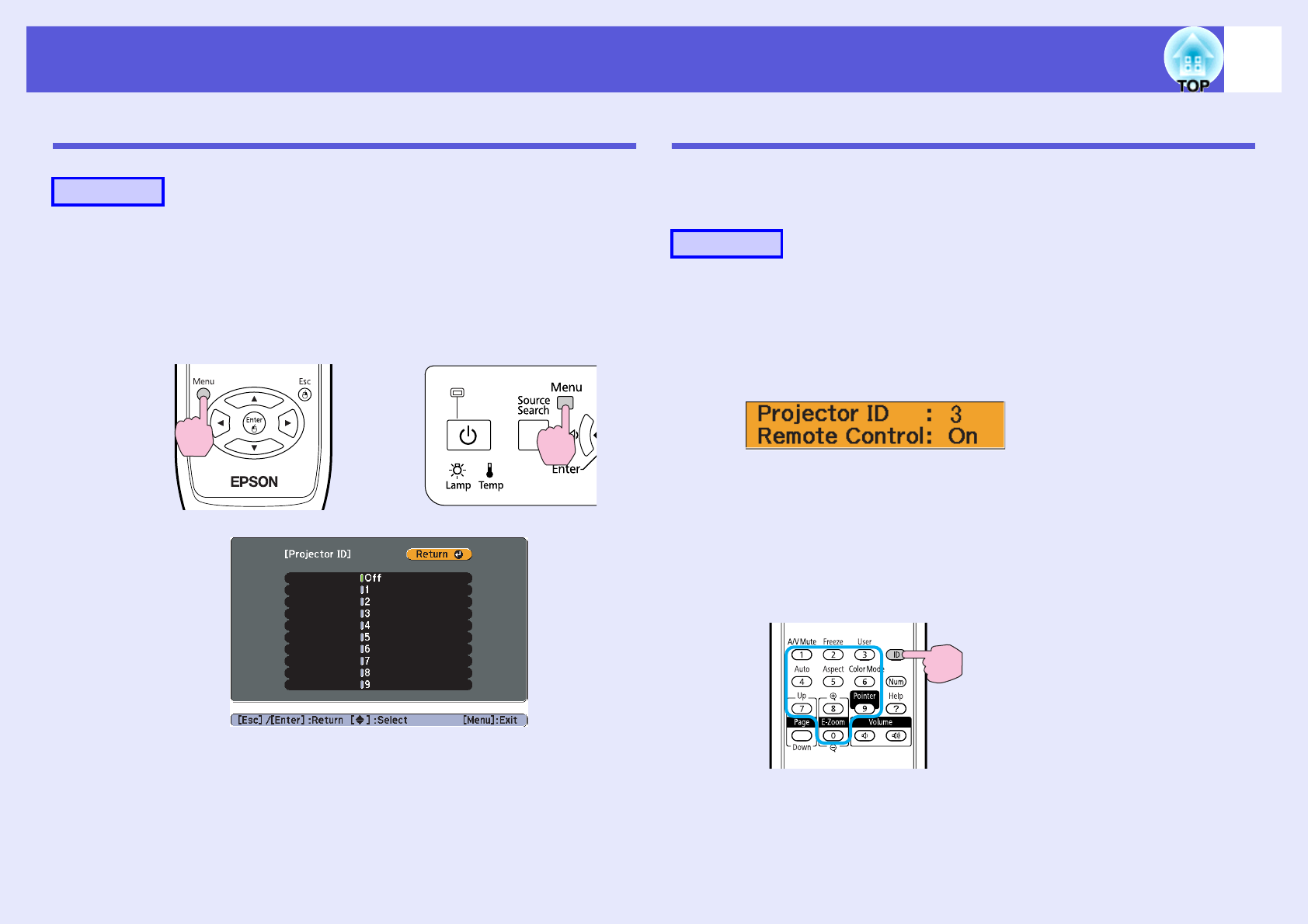

Setting the Projector ID
A
During projection, press the [Menu] button on the
projector and select "Extended" - "Projector ID"
from the configuration menu. s "Using the
Configuration Menu" p.38
B
Choose the ID you want to set and press the [Enter]
button.
C
Press the [Menu] button to close the configuration
menu.
Setting the Projector ID on the Remote Control
Set the ID on the remote control each time you switch the projector power
on.
During projection, point the remote control at the remote
receiver of the target projector. When you press the [ID]
button on the remote control, the projector ID and remote
control operation On/Off display is shown at the top right
of the projection screen.
When the display reads Off
While holding the [ID] button, press a number button to
select a number to match the ID of the projector you want
to operate.
Once this setting has been made, the projector that can be operated by the
remote control is limited.
Procedure
Using the remote control Using the control panel
Procedure
When remote control operations are
enabled:
Keep pressed
