Part Names and Functions
12

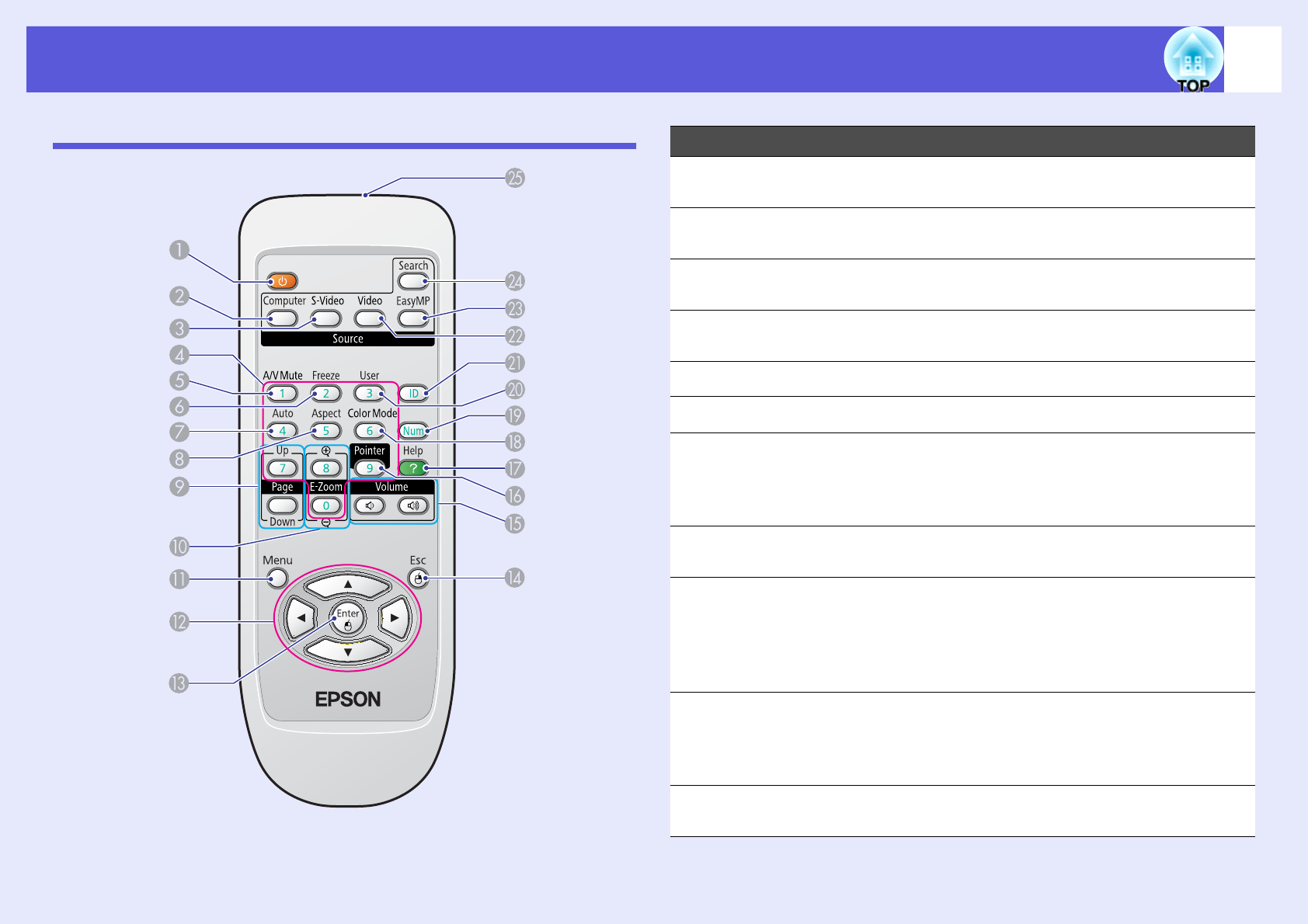

Remote Control
Name Function
A
[t] button Turns the projector power on or off. s Quick
Start Guide
B
[Computer]
button
Changes to images from the computer input
port. s p.16
C
[S-Video] button Changes to images from the S-video input
port. s p.16
D
Numeric buttons Use when specifying password entry or remote
control ID. s p.33, p.30
E
[A/V Mute] button Turns the video and audio on or off. s p.18
F
[Freeze] button Images are paused or unpaused. s p.19
G
[Auto] button If pressed during projection of computer signal
images, it automatically adjusts the tracking,
synchronization, and position to project the
optimum image.
H
[Aspect] button The aspect ratio changes each time the button
is pressed. s p.20
I
[Page] buttons
([) (])
Moves to the next/previous slide when using
the wireless mouse function, or projecting a
PowerPoint file or a scenario from EasyMP as
input source. (EB-1735W/1725/1723 only)
s EasyMP Operation Guide
J
[E-zoom] buttons
[z] [x]
(z) Enlarges the image without changing the
projection size.
(x) Reduces parts of images that have been
enlarged using the [z] button.
K
[Menu] button Displays and closes the configuration menu.
s p.38
