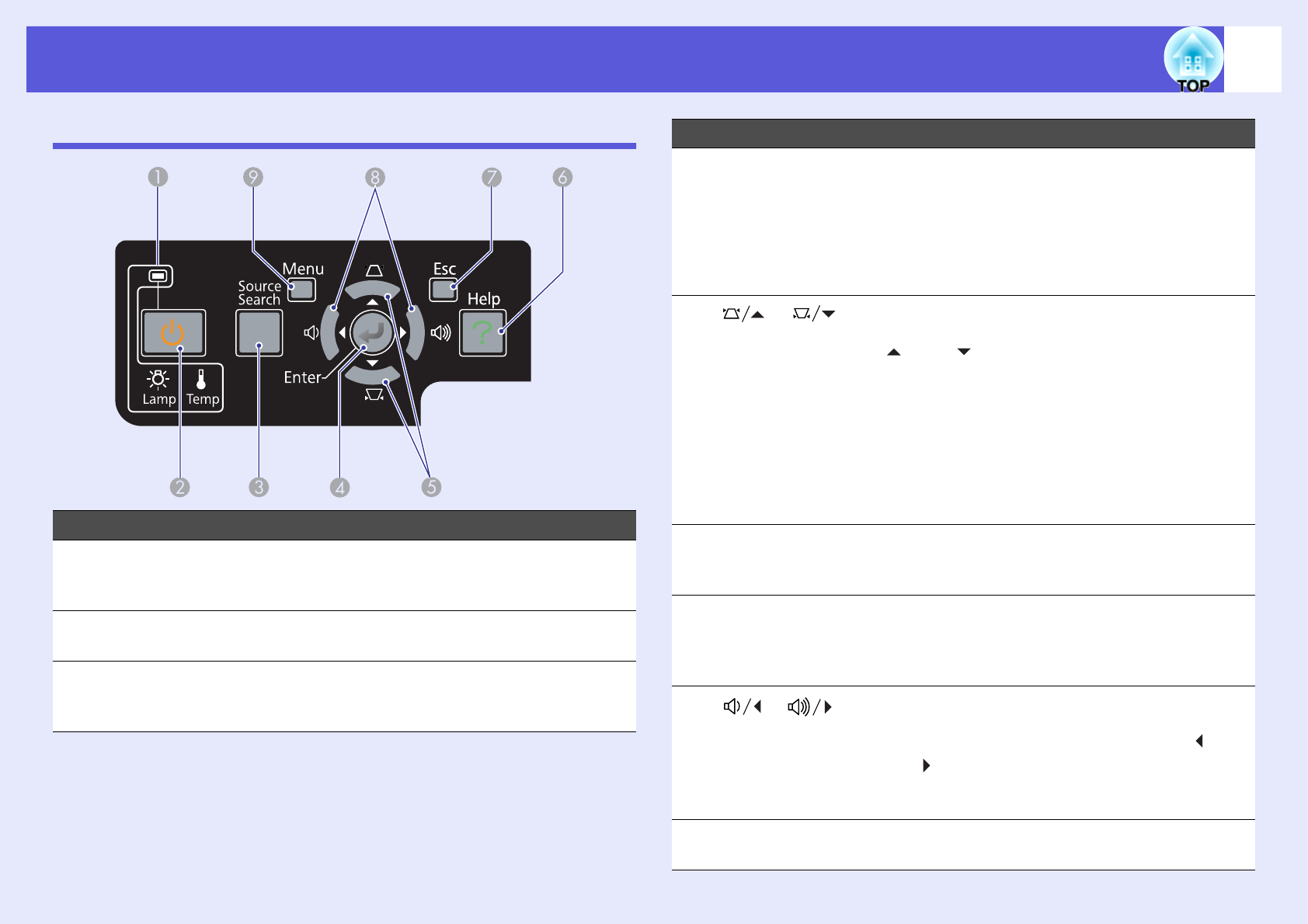

Control Panel
Name Function
A
Status indicators The color of the indicators and whether they
are flashing or lit indicate the status of the
projector. s p.64
B
[t] button Turns the projector power on or off. s Quick
Start Guide
C
[Source Search]
button
Changes to the next input source that is
connected to the projector and is sending an
image. s p.15
D
[Enter] button If pressed during projection of computer signal
images, it automatically adjusts the tracking,
synchronization, and position to project the
optimum image.
When a configuration menu or a help screen is
displayed, it accepts and enters the current
selection and moves to the next level. s p.38
E
[] []
buttons
Corrects keystone distortion. In the following
cases, however, these buttons only have the
[ ] and [ ] functions.
• When the projected image is being sent
through a network connection
• When the PC Free function is being used for
projection
If pressed when a configuration menu or a help
screen is displayed, these buttons select menu
items and setting values. s Quick Start
Guide, p.38
F
[Help] button Displays and closes the help screen which
shows you how to deal with problems if they
occur. s p.63
G
[Esc] button Stops the current function.
If pressed when a configuration menu is
displayed, it moves to the previous menu level.
s p.38
H
[] []
buttons
Adjusts the volume. If pressed while a
configuration menu or a help screen is
displayed, these buttons only have the [ ]
and [ ] functions which select menu items
and setting values. s Quick Start Guide,
p.38
I
[Menu] button Displays and closes the configuration
menu.s p.38
Name Function
