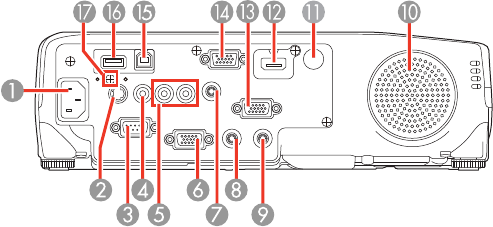

Projector Parts - Rear
1 AC input port
2 S-Video port
3 RS-232C port
4 Video port
5 Audio-L/R ports
6 Monitor Out port
7 Audio1 port
8 Audio Out port
9 Audio2 port
10 Speaker
11 Remote control receiver
12 HDMI port
13 Computer2 (VGA) port
14 Computer1 (VGA) port
15 USB-B port
16 USB-A port
17 Wireless LAN module cover screw
Parent topic: Projector Part Locations
