3. First Step
Safety and Installation (RC90 / EPSON RC+5.0) Rev.6
46

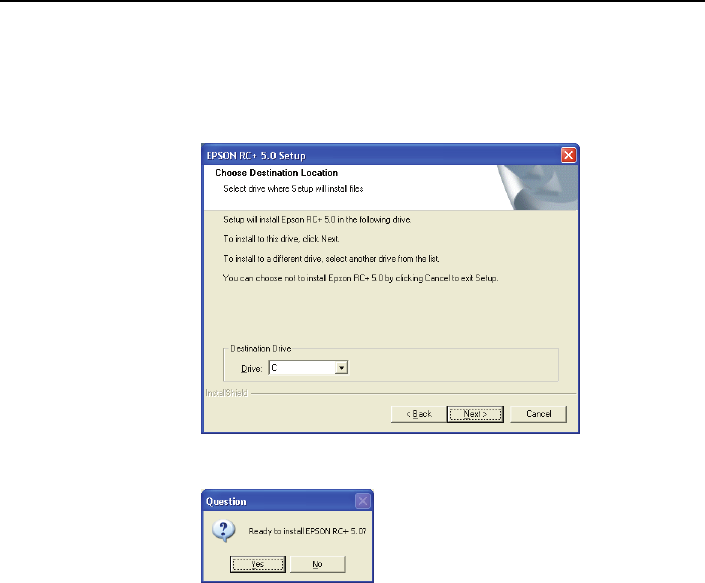

5. Select the drive where you want to install EPSON RC+ 5.0 and click
Next.
The installation directory is called EpsonRC50 and cannot be
changed.
)
NOTE
6. You will be prompted to confirm installation. Click Yes to
continue.
7. If required, Windows Installer and Microsoft .NET Framework 2.0
are installed on your system. This may take several minutes.
Adobe Reader needs to be installed on your PC in order to view the
EPSON RC+ 5.0 manuals. If the installer cannot find Adobe
Reader on your system, it will be installed at this time. Follow the
instructions in the Adobe installer. Do not restart the system after
the Adobe Reader installation has completed.
)
NOTE
8. After the installation has completed, you may be prompted to restart
your computer.
The EPSON RC+ 5.0 software installation is now completed.
