2. Installation
Safety and Installation (RC90 / EPSON RC+5.0) Rev.6
39
(2)

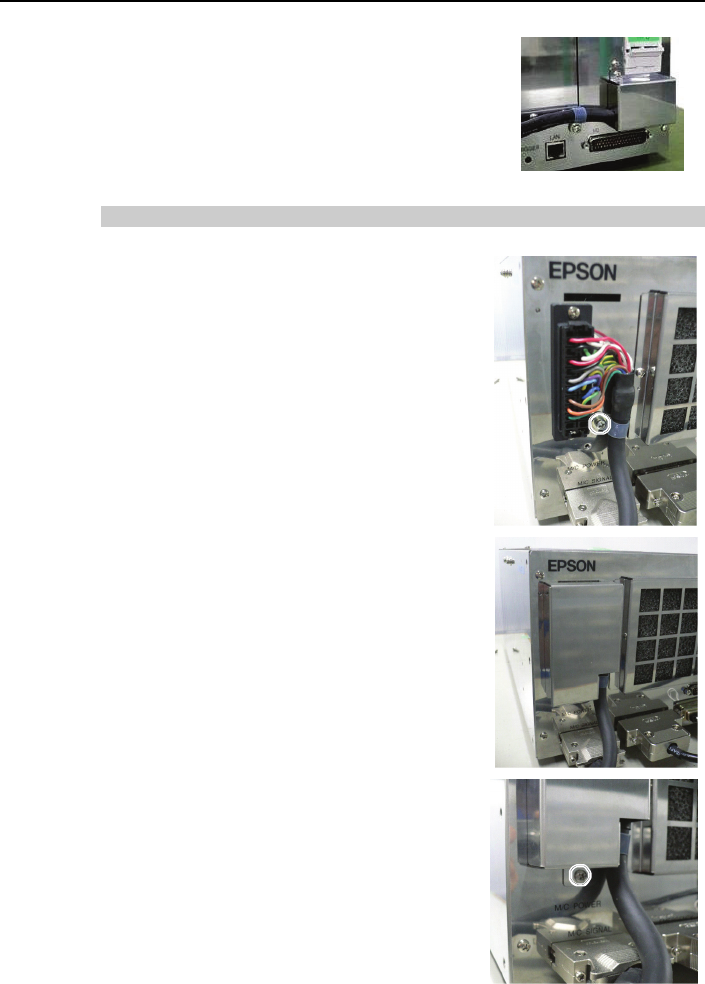

Mount the AC IN terminal block cover.
(Secure the cover with one screw.)
Keep the cables from being trapped.
M/C Power Cable Connection
(1)
Mount the M/C Power Cable as shown in
the picture and form the cables.
(2)
Set the M/C Power Cable in the clamp for
the M/C Power Cable.
(3)
Mount the cover for the M/C Power
Connector.
(4)
Secure the cover with the screw.
