1. Safety
Padlock Size and Weight
The padlock is not supplied with the lockout attachment and must be supplied by
the user.
The total weight of the padlock can be a maximum of 45 g.
Make sure the padlock weight does not exceed 45 g, otherwise the POWER switch
may be damaged.

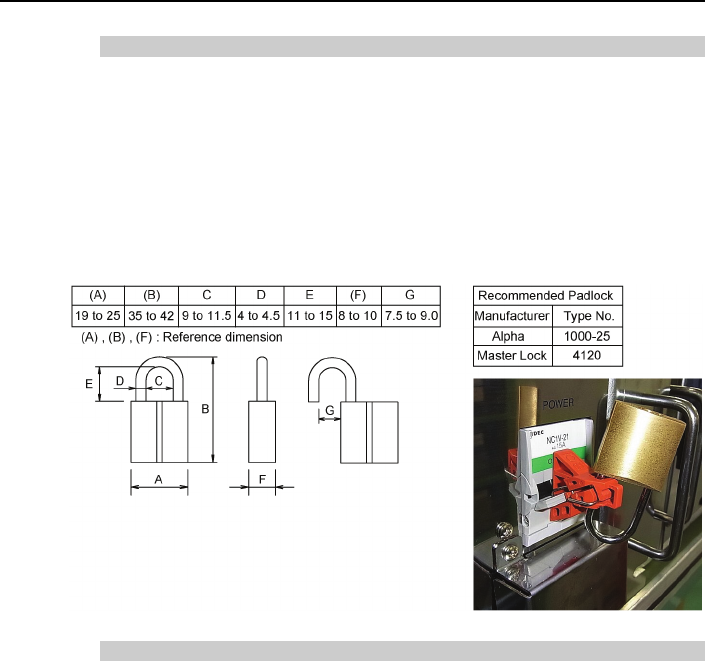

Applicable Padlock
Safety Precautions
When using the padlock, do not use the controller where it is subject to vibration
or shock, otherwise failure or damage may result.
Do not apply a force of more than 50N on the lockout attachment, otherwise the
lockout attachment will be damaged.
18 Safety and Installation (RC90 / EPSON RC+5.0) Rev.6
