Caution: Make sure the control pad is positioned no more than 6.5 ft (2 m) away from the projector, and
no obstacles are blocking the signal from the projector. Do not place the control pad behind the
projection surface.
Note: This also lets you use the interactive pens with your computer. You need to adjust the USB Type
B setting in the projector's Extended menu before you can project through the USB port. Note that using
USB Display will slow interactive pen function. For the best performance, VGA or HDMI connections are
recommended, in addition to the USB connection for interactive pen usage.
1. Turn on your computer.

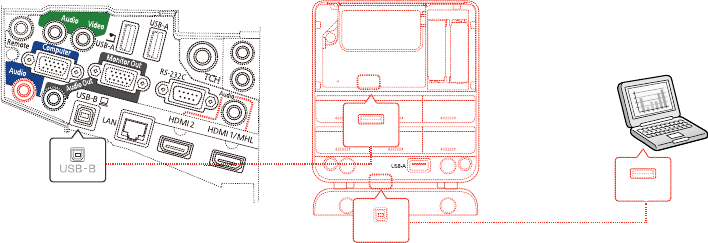

2. Make sure a USB cable is connected between the USB-B port on the projector and the USB-A port
on the control pad.
3. Connect another USB cable to the USB port on the bottom of the control pad and any available USB
port on your computer.
4. To use USB Display, do one of the following:
• Windows 8.x: Click EPSON_PJ_UD in the upper right-corner, then select Run EMP_UDSe.exe
in the dialog box that appears to install the Epson USB Display software.
• Windows 7/Windows Vista: Select Run EMP_UDSE.exe in the dialog box that appears to install
the Epson USB Display software.
• Windows XP: Wait as messages appear on your computer screen and the projector installs the
Epson USB Display software on your computer.
• Windows 2000: Select Computer, EPSON_PJ_UD, and EMP_UDSE.EXE to install the Epson
USB Display software.
