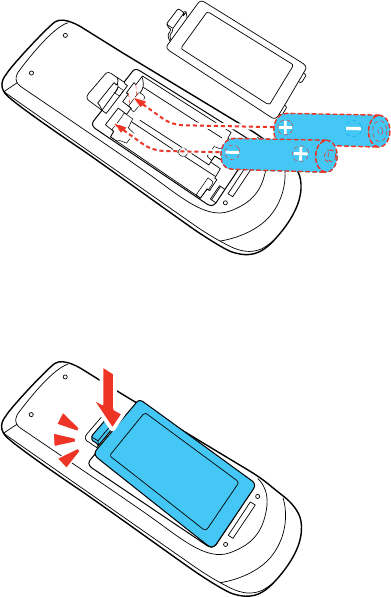

3. Insert the batteries with the + and – ends facing as shown.
4. Close the battery cover and press it down until it clicks into place.
Warning: Dispose of used batteries according to local regulations. Do not expose batteries to heat
or flame. Keep batteries out of the reach of children; they are choking hazards and are very
dangerous if swallowed.
Parent topic: Projector Maintenance
Replacing the Interactive Pen Batteries
Each pen uses one AA alkaline or Sanyo Eneloop rechargeable battery. Replace the battery as soon as
it runs out.
