Using Finger Touch Interactivity
You can use your finger to perform the same functions as the interactive pens when you install the
Touch Unit (BrightLink Pro 1430Wi).
Note: See the Installation Guide for detailed instructions on installing the Touch Unit.
Touch Unit Safety Instructions
Calibrating for Finger Touch Interactivity
Using Finger Touch Operations
Parent topic: Using the Interactive Features
Related concepts
Whiteboard Mode
Using BrightLink With a Computer
Annotation Mode (PC Free)
Related tasks
Adjusting the Angle of the Touch Unit
Touch Unit Safety Instructions
The Touch Unit enables finger touch interactivity with your projector (BrightLink Pro 1430Wi). Do not
connect it to any other projectors or devices.

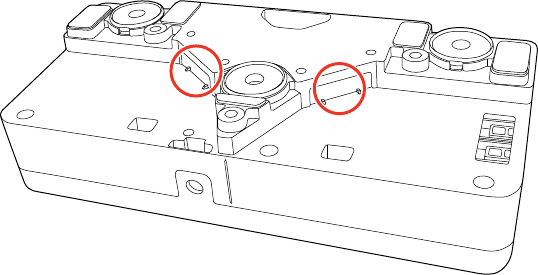

A built-in, high-power laser is emitted from the laser diffusion ports on the back of the Touch Unit.
169
