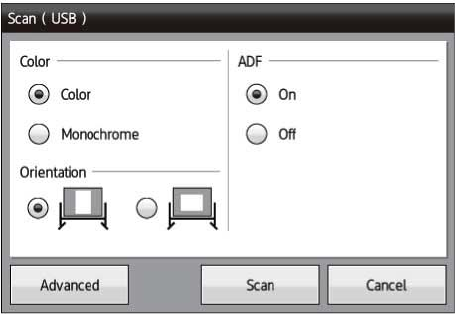

You see the Scan screen:
3. Select the following settings:
• Select Color or Monochrome
• Select the orientation for the scanned document.
• Under ADF, select On if you placed your document in the automatic document feeder.
4. Select Advanced to access additional options.
5. Select Scan on the Scan screen.
After a moment, you see your document or image on the screen.
Note: Multi-page documents appear on multiple whiteboard pages.
Parent topic: Whiteboard Mode
Related references
The Bottom Whiteboard Toolbar
Selecting a Networked Device Source
You can project an image from up to 50 devices connected to the projector via a network. You can select
the image source from computers running EasyMP Multi PC Projection, and smartphones or tablets
running Epson iProjection.
