Note: If you want to use a web browser to select settings when the projector is turned off, you need to
adjust the Standby Mode settings in the ECO menu.
1. Make sure the projector is turned on.
2. Start your web browser on a computer connected to the network.
3. Type the projector's IP address into the browser's address box and press the computer's Enter key.
You see the Web Control screen and a prompt to enter a user ID and password.
4. Enter the following information in uppercase or lowercase letters, exactly as shown:
• For the user ID, enter EPSONWEB. (You cannot change the user ID.)
• For the password, enter the default password admin. (You can change the Web Control password
using the projector's Network menu.)
5. To select projector menu settings, select the name of the menu and follow the on-screen instructions
to select settings.
6. To control projection remotely, select the Web Remote option.
Note: If the Web Remote Password is set to On, the user ID for the remote is EPSONREMOTE.

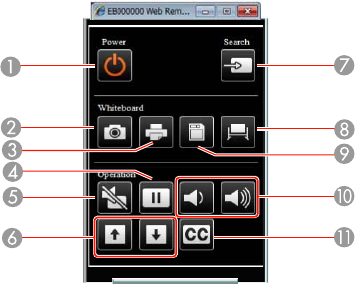

You see this screen:
1 Power button control
