It is possible to choose between a lower part for eight channels and for twelve
channels. Both cover the same volume range.

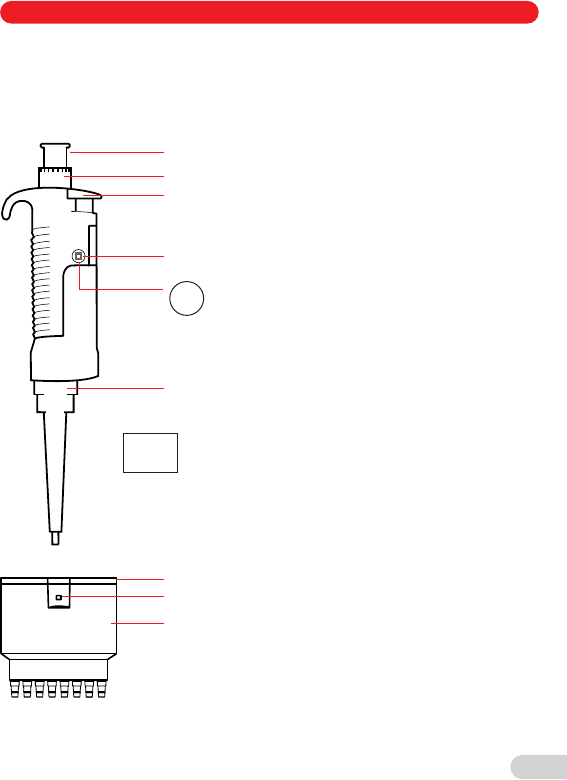

Fig. 2 Research (single-channel) and multi-channel lower part
1 Control button
First stop (measuring stroke); the
aspirated volume is dispensed.
Second stop (blow-out); the liquid
remaining in the tip is blown out.
2 Setting ring
To set the volume
For fixed-volume pipettes, this ring is
for adjustment purposes only.
3 Ejection button
Tip ejection.
4 Adjustment opening
with overlapping calibration seal
for inserting the wrench during
adjustment.
5 Ejection sleeve
To extract liquids from long vessels, the
ejection sleeve may be pulled off when
the ejection button is held down.
6 Multi-channel lower part with:
7 Cover plate
8 Opening for the tool for disassembly
9 Housing
