User`s manual

Installation
Page 3-16

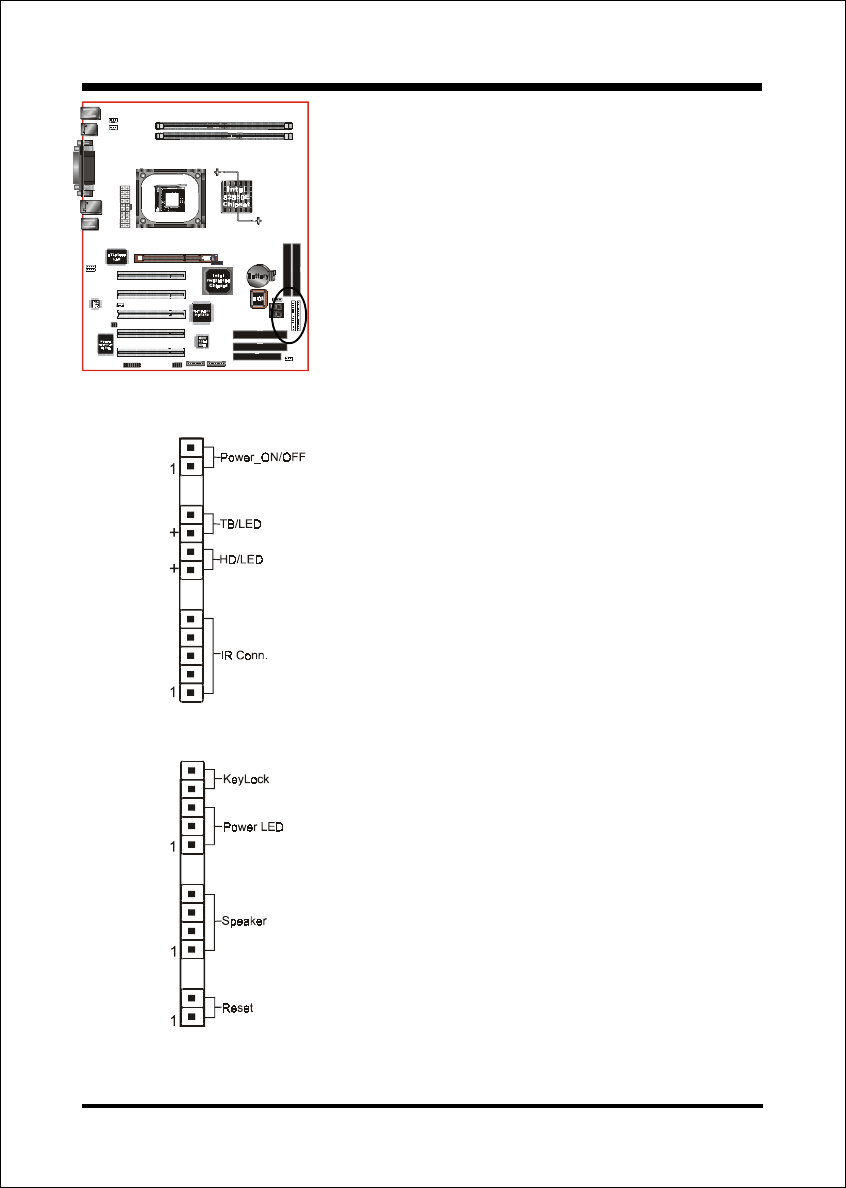

J3
""
""
" Power On/Off
(This is connected to the power button on the
case. Using the Soft-Off by Pwr-BTTN
feature, you can choose either Instant Off
(turns system off immediately), or 4 sec delay
(you need to push the button down for 4
seconds before the system turns off). When
the system is in 4 sec delay mode, suspend
mode is enabled by pushing the button
momentarily.)
""
""
" Turbo LED indicator
""
""
" IDE LED indicator
LED ON when Onboard PCI IDE Hard disks is
activate
""
""
" IR Connector
1. VCC 4. GND
2. CIRRX 5. IRTX
3. IRRX
""
""
" KeyLock
Keyboard lock switch & Power LED connector
1. Power LED(+) 4. KeyLock
2. N/C 5. GND
3. GND
""
""
" Speaker
Connect to the system's speaker for beeping
1. Speaker 3. GND
2. N/C 4. VCC
""
""
" Reset
Closed to restart system.
J2
* The power LED lights when the
system is powered on and blinks
in SLEEP Mode or STR Mode.
