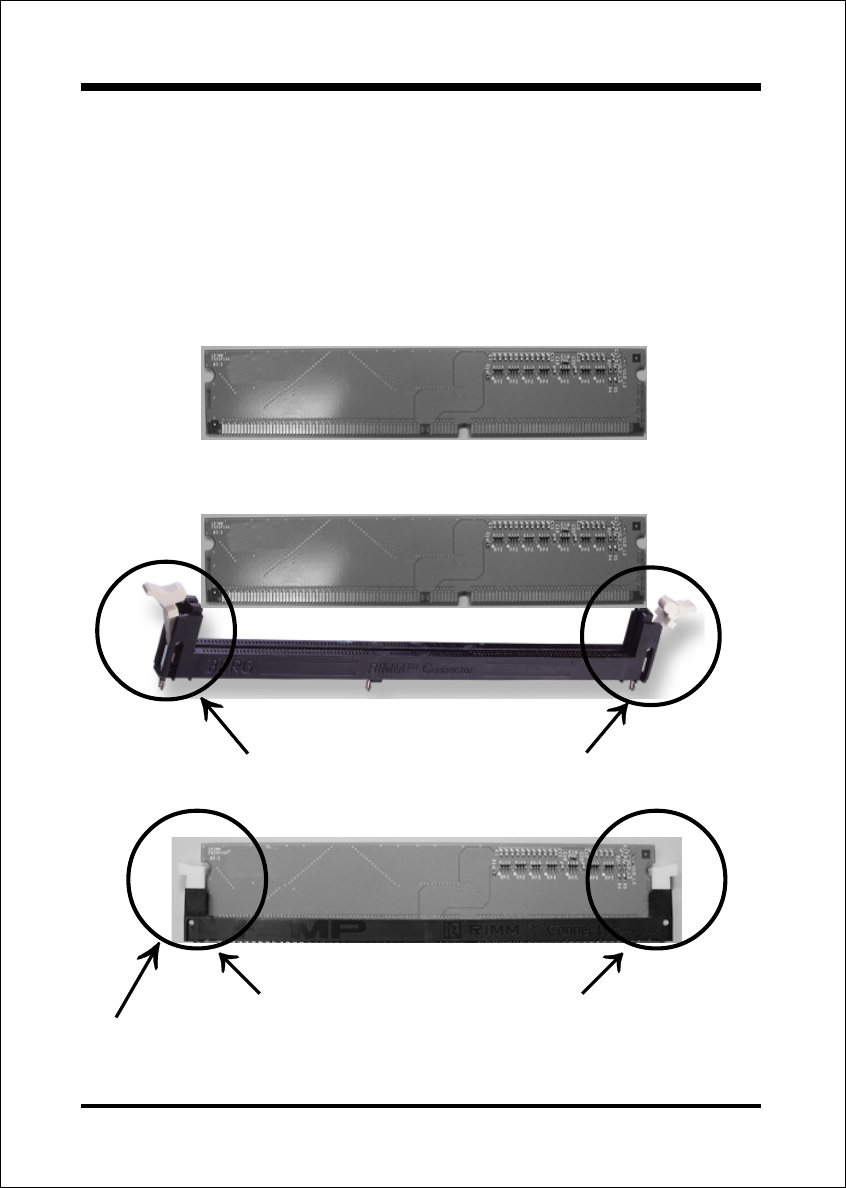

Figure 12a displays the notch marks and what they should look like on your C-RIMM
memory module.
C-RIMMs have 232-pins and one notch that will match with the onboard C-RIMM
socket. C-RIMM modules are installed by placing the chip firmly into the socket at
a 90 degree angle and pressing straight down (figure 13a) until it fits tightly into the
RIMM socket (figure 14a).
Figure 12a
Figure 13a
C-RIMM Module clip before installation
C-RIMM Module clip after installation
To remove the C-RIMM module simply press down both of the white clips on
either side and the module will be released from the socket.
Figure 14a
