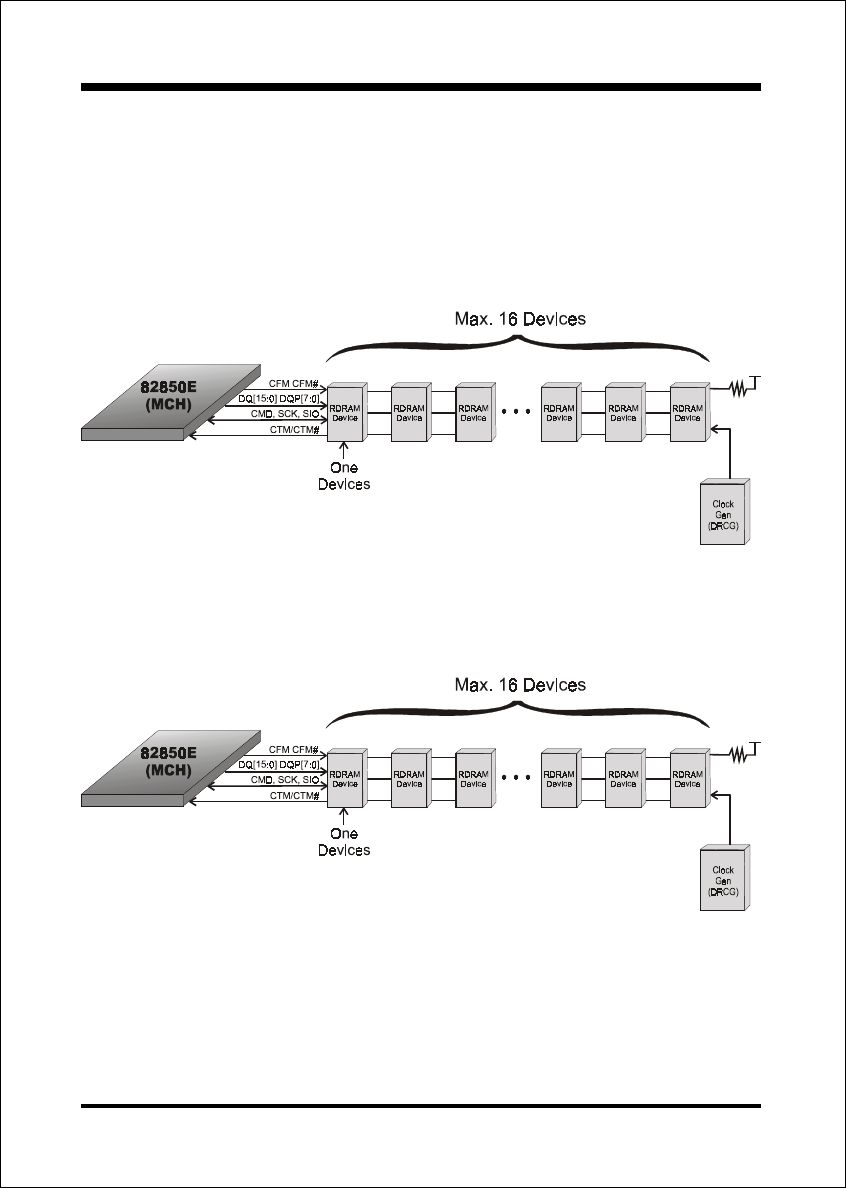

The figure 8 below shows the RSL interconnections between 850E (MCH) and
two RDRAM channel. This figure describes the logical interconnections, and is
not a physical representation of RDARM devices on a motherboard.
Figure 8: MCH/RDRAM Interconnections
Channel A
Channel B
