2.12 LED STATUS INDICATOR
An LED is incorporated into the body of the ATPIAL as
shown in Figure 2-19. A list of possible LED indications is
provided in Table 2-10.

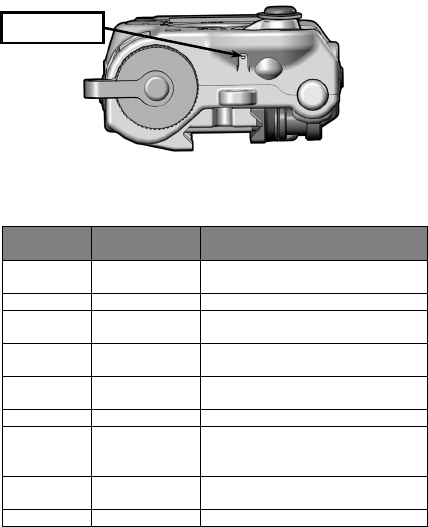

Figure 2-19. LED Status Indicator.
Table 2-10. LED Status Indicator.
Indicator
Color
Indicator
Rate
ATPIAL Status
GREEN Steady
Laser(s) activated or continuous IR
illumination
GREEN
1 flash per second
1 illuminator pulse per second
GREEN
2 flashes per
second
2 illuminator pulses per second
GREEN
4 flashes per
second
4 illuminator pulses per second
GREEN
8 flashes per
second
8 illuminator pulses per second
RED
Steady
Laser(s) not activated, low battery power
GREEN/RED
Steady green with
1 red flash every 5
seconds
Laser(s) activated, low battery power
RED
Steady for 2
seconds
IR programming failed
ORANGE
3 orange flashes
IR programming successful
LED STATUS
INDICATOR
