Owner's manual

2-10
2.4 BORESIGHT ADJUSTERS (Continued)

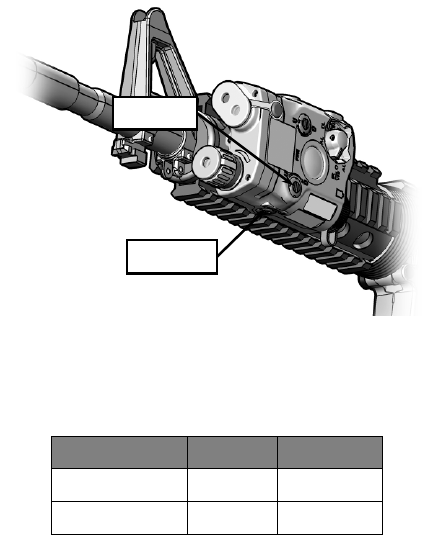

Figure 2-8. Illuminator Adjusters (Left Side Mounted).
Table 2-5. Beam Movement for the IR Illuminator
(Left Side Mounted).
Adjuster Rotation
Beam
Movement
Bottom Adjuster
Elevation
CW
CCW
Up
Down
Side Adjuster
Windage
CW
CCW
Right
Left
SIDE
ADJUSTER
BOTTOM
ADJUSTER
