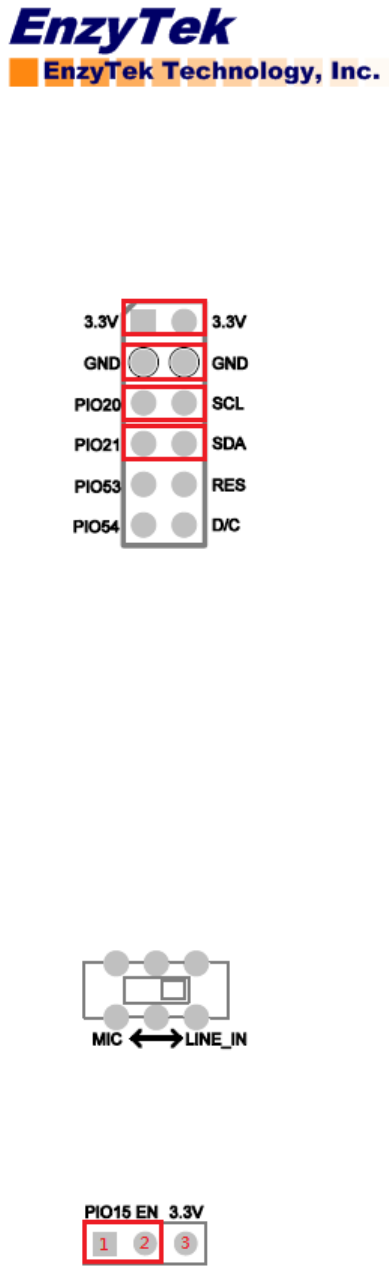

10. I2C(Display)
Header default setting
SCL=PIO20, SDA=PIO21
11. Button
Header default setting:
Reset=PIO0, SYS_CTRL=PIO1, SW3=PIO2, SW4=PIO3, SW5=PIO4, SW6=PIO5
12. LED
Header default setting
LED_G=LED0, LED_B=LED1, LED_R=LED2, LED_O=LED4, LED_W=LED5
13. MIC/LINE IN
Switch setting
Left: MIC In
Right: Line in
14. HP OUT
1-2 short: PIO15 enable
2-3 short: 3.3V enable
