Appendix E: WLS904P Wireless Motion
Detector Installation Instructions
The WLS904P is designed to combine the conve-
nience of a wireless detector with effective and reli-
able detection of human motion as well as good
protection against the nuisance alarms associated
with pets weighing up to 60 lbs (27.3 kg)
Installing The Detector
WLS904P provides effective immunity to single or
multiple pets whose total combined weight does not
exceed 60 lbs. (27.3kg) when installed and configured
in the following manner.
Location
Select a detector location that will provide the cover-
age required and will allow the detector to be
mounted a minimum of 6¾ ft (1.95m) high and not
higher than 10ft (3m) (7¾ ft / 2.3m recommended).
Consider the following to avoid false alarms:
• Do not aim the detector at a stairwell to which a
pet has access to.
• Do not place furniture or objects higher than 3ft
(0.9m) which a pet can climb onto (e.g. a cat on a
couch), closer than 10ft (3m) from the detector.
• Mount the detector flat on a wall or in a corner.
Do not angle it downwards or use mounting
brackets with this detector when it is used in con-
junction with pets.
• Do not aim the detector at reflective surfaces such
as mirrors or windows as this may distort the cov-
erage pattern or reflect sunlight directly onto the
detector.
• Avoid locations that are subject to direct high air
flow such as near an air duct outlet.
• Do not locate the detector near sources of mois-
ture such as steam or oil.
• Do not limit the coverage by large obstructions in
the detection area such as plants or cabinets.
NOTE:No detector should be mounted without
first performing a module placement test to
determine that it is in range of the wireless
receiver. See the Placement Test instructions in
the Instruction Sheet for your receiver, or in the
installation manual for your system.
When a location has been
determined, remove the
plastic from the mounting
holes and locate the back-
plate on the wall and mark
screw locations. It is sug-
gested that wall anchors be
used for all screw locations.
Secure the backplate to the
wall, and then secure the
enrolled Detector to its backplate.
NOTE:The coils and antenna on the Motion
Detector circuit board are very sensitive compo-
nents precisely adjusted for maximum perfor-
mance.
Do not touch the coils or antenna! Even minor distor-
tions can affect the performance of the Motion Detector.
Enrolling a WLS904P
On the back of the PIR housing, there will be two
serial numbers: a five-digit number and a six-digit
number. Please refer to your receiver installation man-
ual for information on which serial number should be
enrolled.
Changing the Sensitivity
Setting
The WLS904P features “Fast” and
“Slow” settings on jumper J1
which is used to configure the
detector for the weight of the
pet(s) and the environment. For
an environment with a single pet
whose weight does not exceed
30lbs (13.6kg) the jumper should be set to “Fast” set-
ting. In an environment with single or multiple pets
whose combined weight is greater than 30lbs
(13.6kg) but not greater than 60 lbs. (27.3kg) the
jumper must be set to the “Slow” setting. In a hostile
environment or where the installation conditions can
not be controlled J1 must be set to the “Slow” set-
ting.

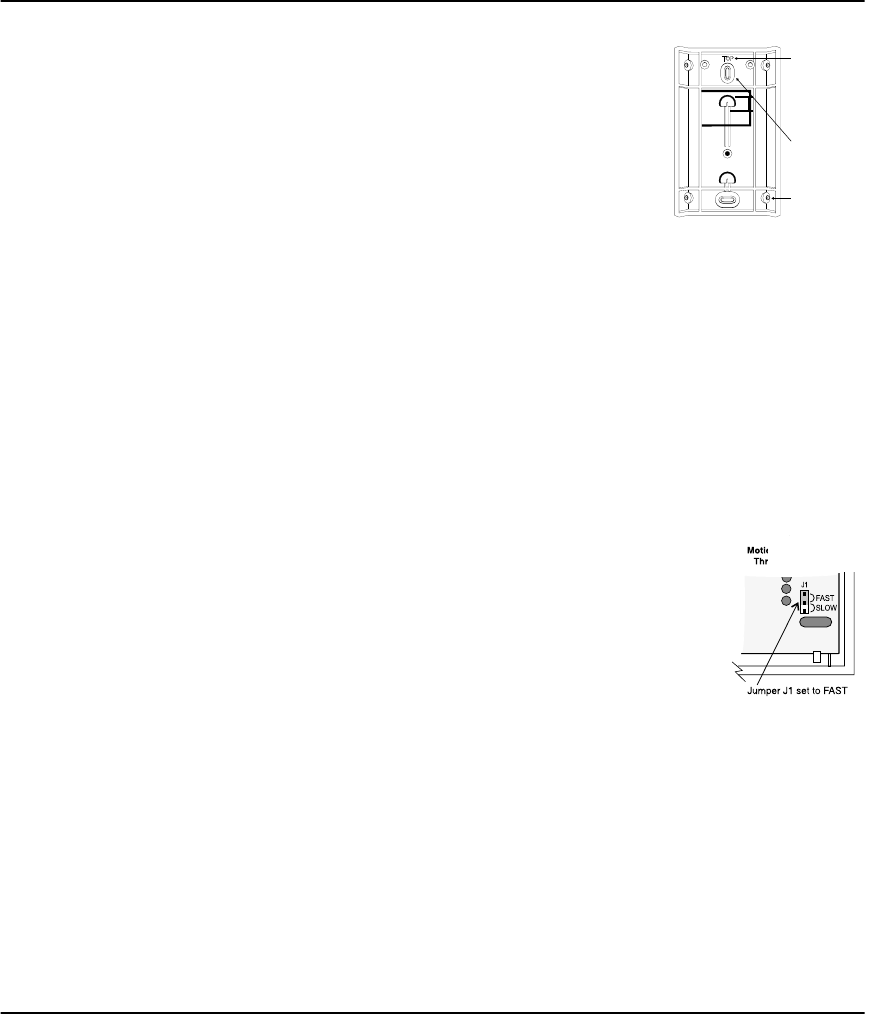

The diagram above shows the jumper location. To
change the setting from Fast to Slow, move the
jumper over one pin, as shown in the diagram.
Ensure proper
orientation of
backplate
Mounting
hole
knockouts
Corner
mounting
Knockouts
WLS904P-433 with
Three-Pin Jumper
