Envoy Installation, Commissioning & Operating Manual

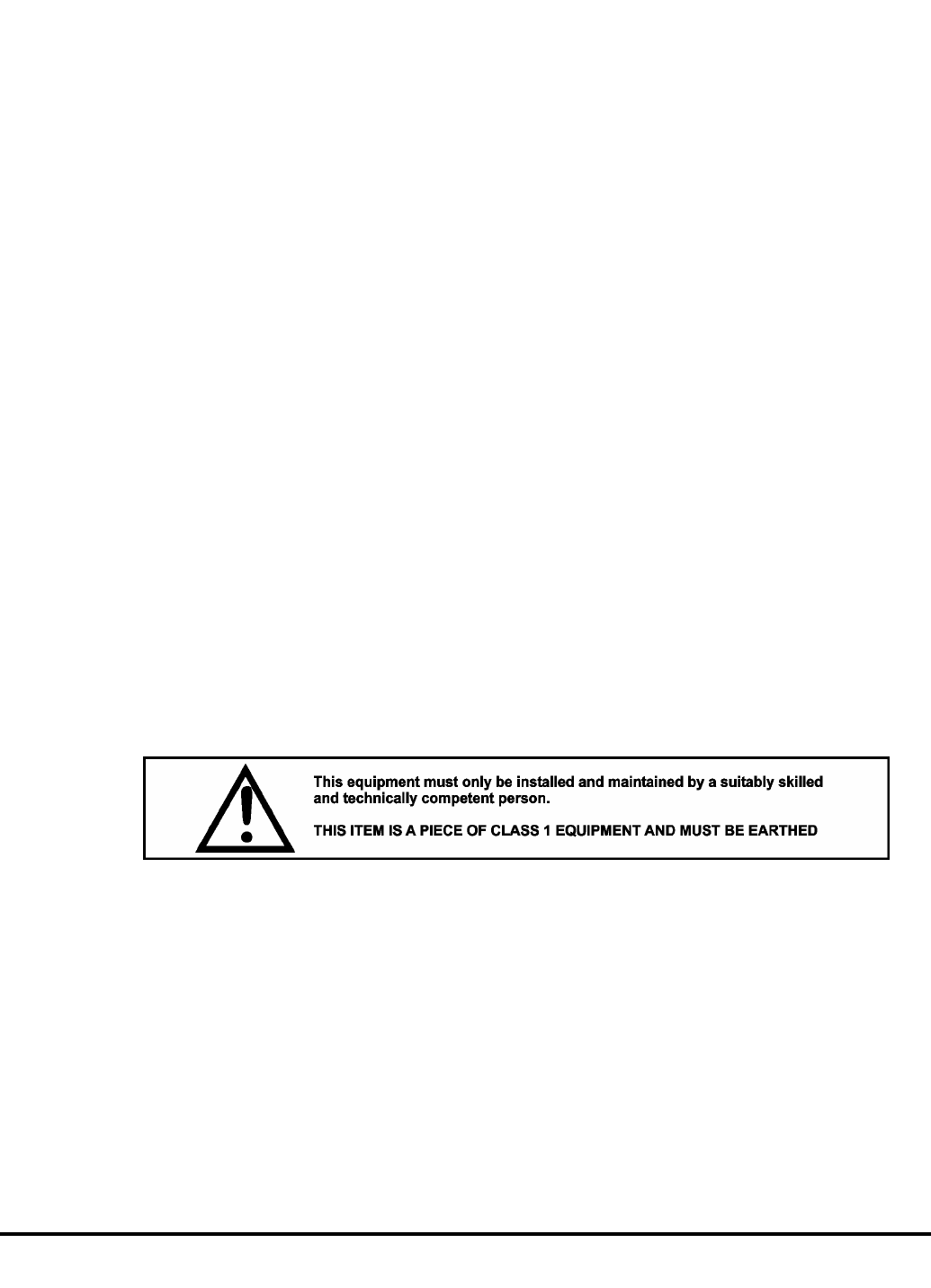

SECTION 1 – INTRODUCTION
About This Manual
This manual is intended as a complete guide to the 1 to 4 zone range of conventional Surveyor ENVOY
fire alarm control panels. Installation instructions are provided in the first part of the manual with the
following sections dealing with commissioning, full technical details and operating procedures. A
separate Log Book is also provided.
System Design and Planning
It is assumed that the system, of which this control panel is a part, has been designed by a competent
fire alarm system designer in accordance with BS 5839-1:2002 and with regard to BS EN 54 parts 2 and
4 in the case of control equipment and power supplies. Design drawings should be provided to clearly
show the position of any field devices and ancillary equipment.
Panel Types
FCPENV-1
A single zone, non extendable control panel with an integral 1.0 Amp PSU and space for 2 x 12V S.L.A
batteries. Cabinet size: 277mm Wide x 200mm High x 97mm Deep
FCPENV-1EXT
A single zone control panel with the capacity to be extended up to 4 zones via plug in zone cards.
Integral 1.0 Amp PSU and space for 2 x 12V S.L.A batteries. Cabinet size: 400mm Wide x 200mm High
x 97mm Deep.
FCPENV-1EXT-L
As above but in larger cabinet to allow batteries to be fitted without removing the PCB. Cabinet size:
400mm Wide x 300mm High x 97mm Deep.
General
The control panel is a micro-processor controlled, conventional fire alarm control system, comprising of
one circuit board, plus add on modular circuit boards, for additional zones (extendable version only).
The enclosure consists of back box and hinged, removable lid. Constructed of 1.2mm (18swg) zintec
mild steel and powder coated in textured light grey. The enclosure is designed to give protection to IP30
level.
Control panels are available from 1 to 4 zones. They are supplied as a one zone non extendable
control panel or a one zone extendable control panel. The panel is extended using either the hy-spec
single zone cards, which consist of one zone, one sounder circuit and one aux relay, or a three zone
budget zone card which consists of just three zones on a single card plus zone +ve for 3 wire
connections.
A 4 zone repeater is available and requires one core per zone plus three additional cores.
These panels are designed to comply with the requirements of BS EN 54 part 2 1998, but include
integral facilities to enable connection to older systems, which may not comply with current standards.
