Installation Instructions

Step 5
Wiring

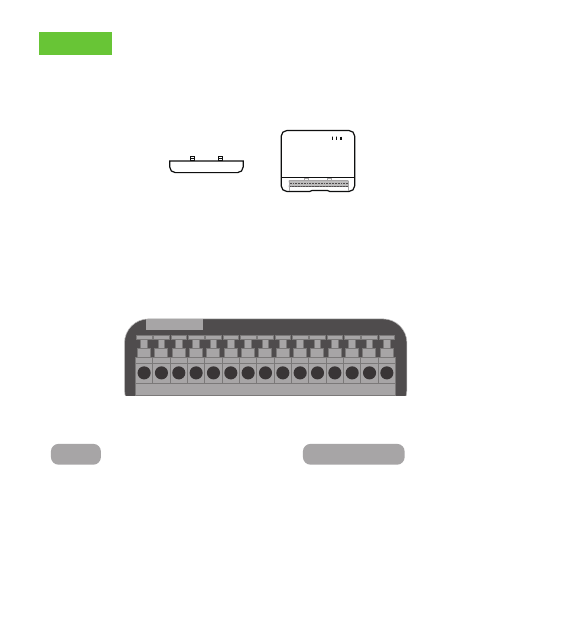

Remove the small cover on the front of the controller.
Connect the sprinkler wires according to the correspond-
ing signs. Refer to the old wiring from the photo you took
in Step 2.
C 1-8 or 1-16
Common Wires
Common wires are labeled “C”
Zone Wires
Zone wires correspond to your
landscape’s zones. Insert them
into the numbered terminals.
C 1 2 3 4 5 6 7 8 M C S1 S2
24VAC
- +
8 Zones
