The SmartSwitch 2000 Chassis View
2-68 Managing the Hub
2. Select Broadcast Suppression. The Broadcast Statistics and Suppression
window, Figure 2-25, opens.

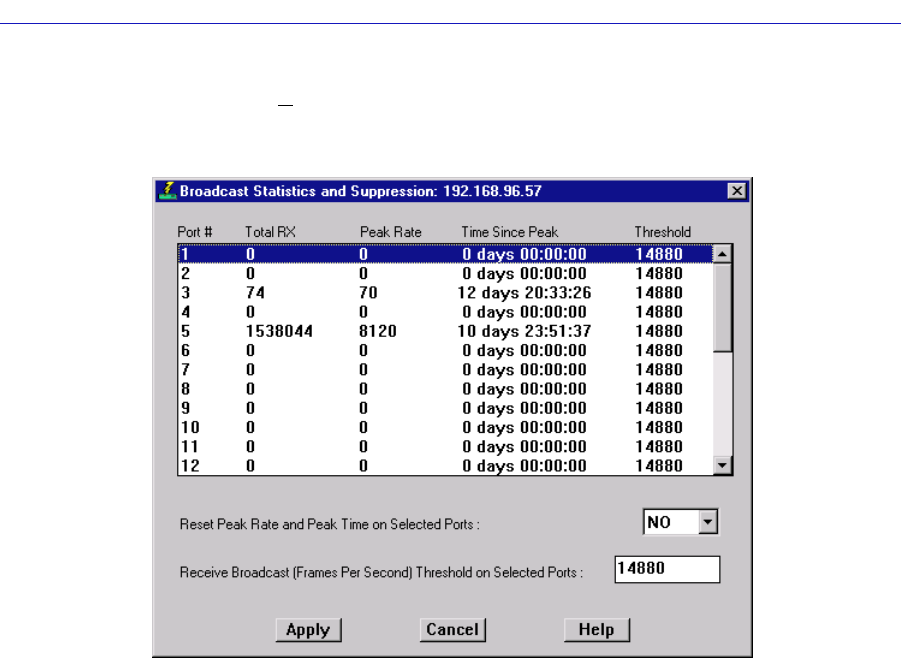

Figure 2-25. The Broadcast Statistics and Suppression Window
Port #
This read-only field indicates the number assigned to each interface on the device.
Total RX
Displays the total number of broadcast frames received on the interface since the
device was last initialized.
Peak Rate
The peak rate of broadcast frames (in frames per second) received on the interface
since the device was last initialized or the peak value was administratively reset
through this window.
Time Since Peak
The time (in a days, hh:mm:ss format) that the peak broadcast rate occurred; that
is, the system uptime (MIB-II) at the time the peak occurred. This value will be
reset to 0 days, 00:00:00 when the device is re-initialized or when you
administratively reset the peak values.
