The SmartSwitch 2000 Chassis View
2-66 Managing the Hub

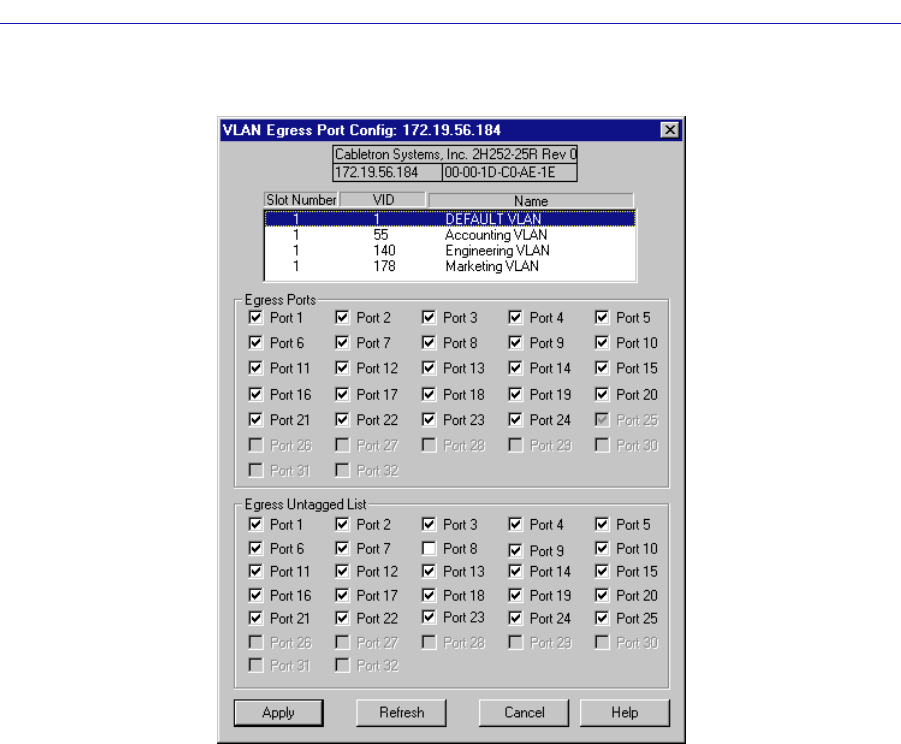

Figure 2-24. The VLAN Egress Port Config Window
The list box at the top of this window is used to select a configured VLAN for
association with your switch’s ports. Clicking on a VLAN will display its
currently associated ports in the lower portion of this window. The list box
displays the following information:
Slot Number
This field displays the slot index for the device being configured.
VID
This field lists the VLAN IDs of the currently configured VLANs on your switch.
Name
This field lists the VLAN names assigned to the currently configured VLANs on
your switch.
